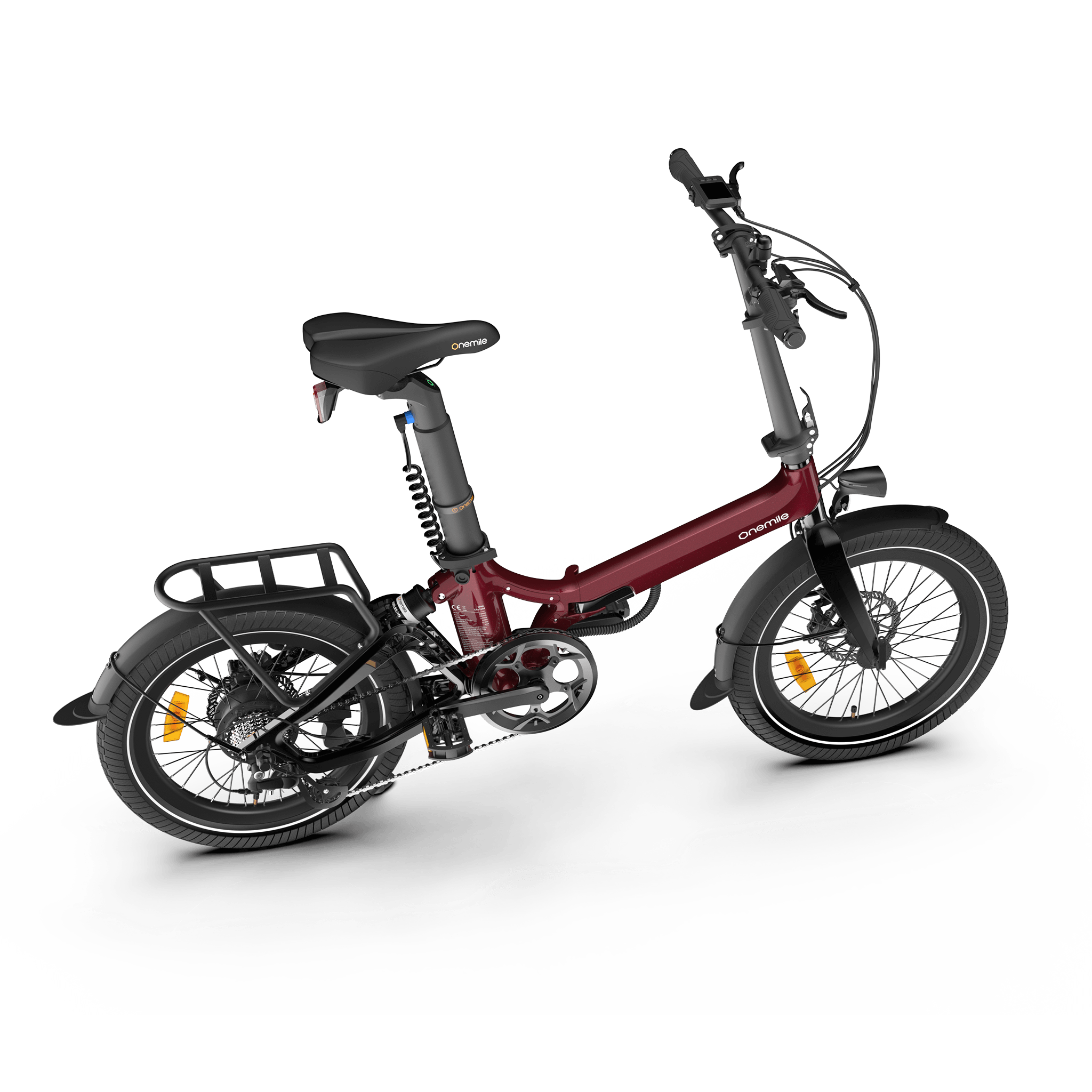

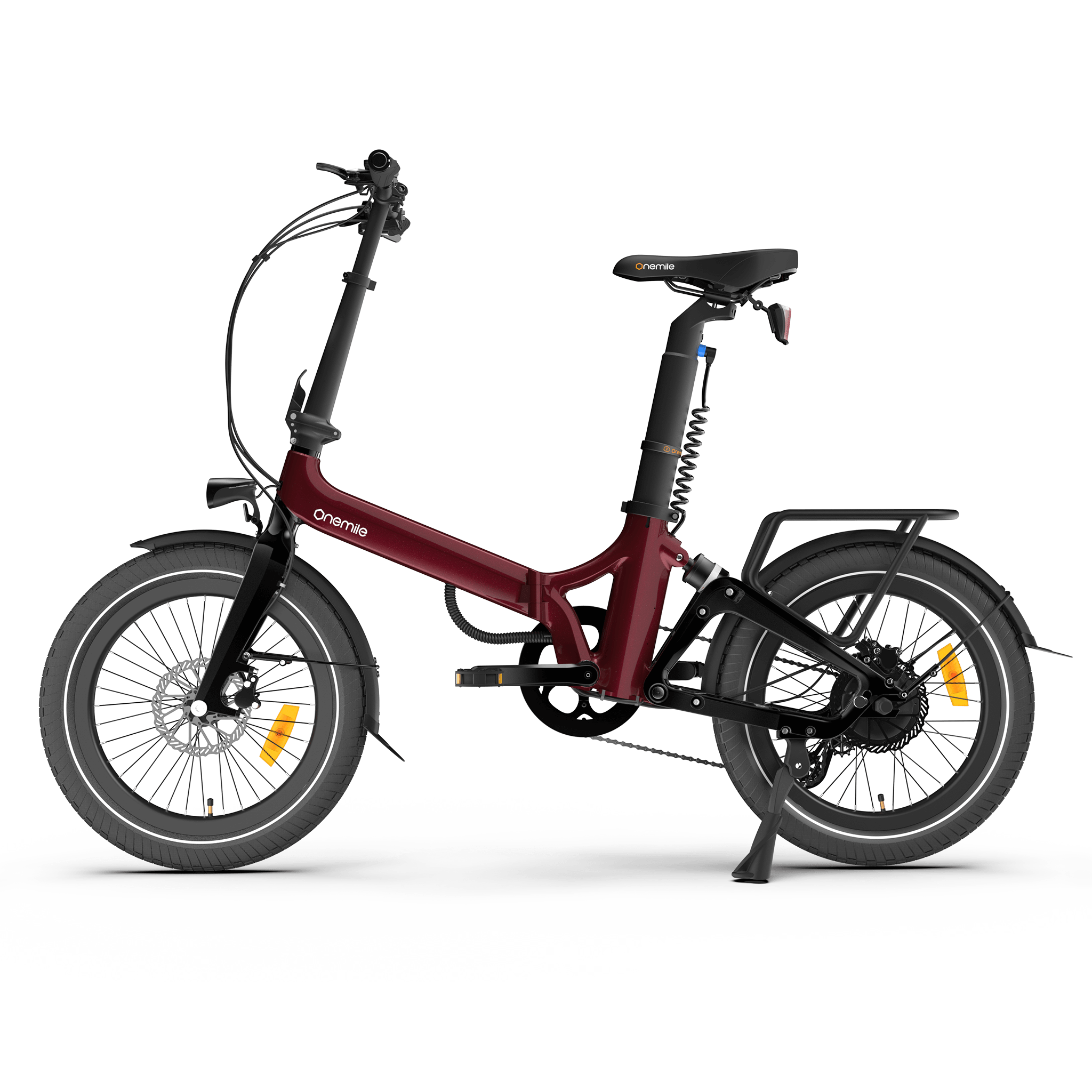

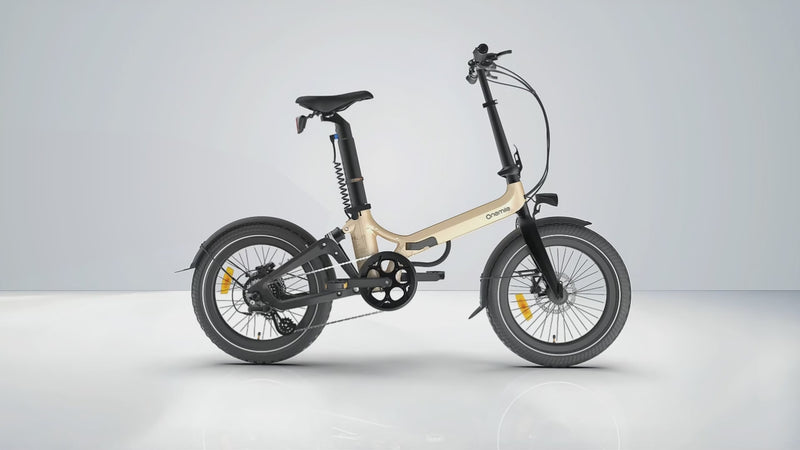

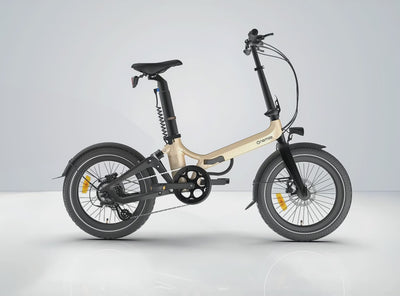

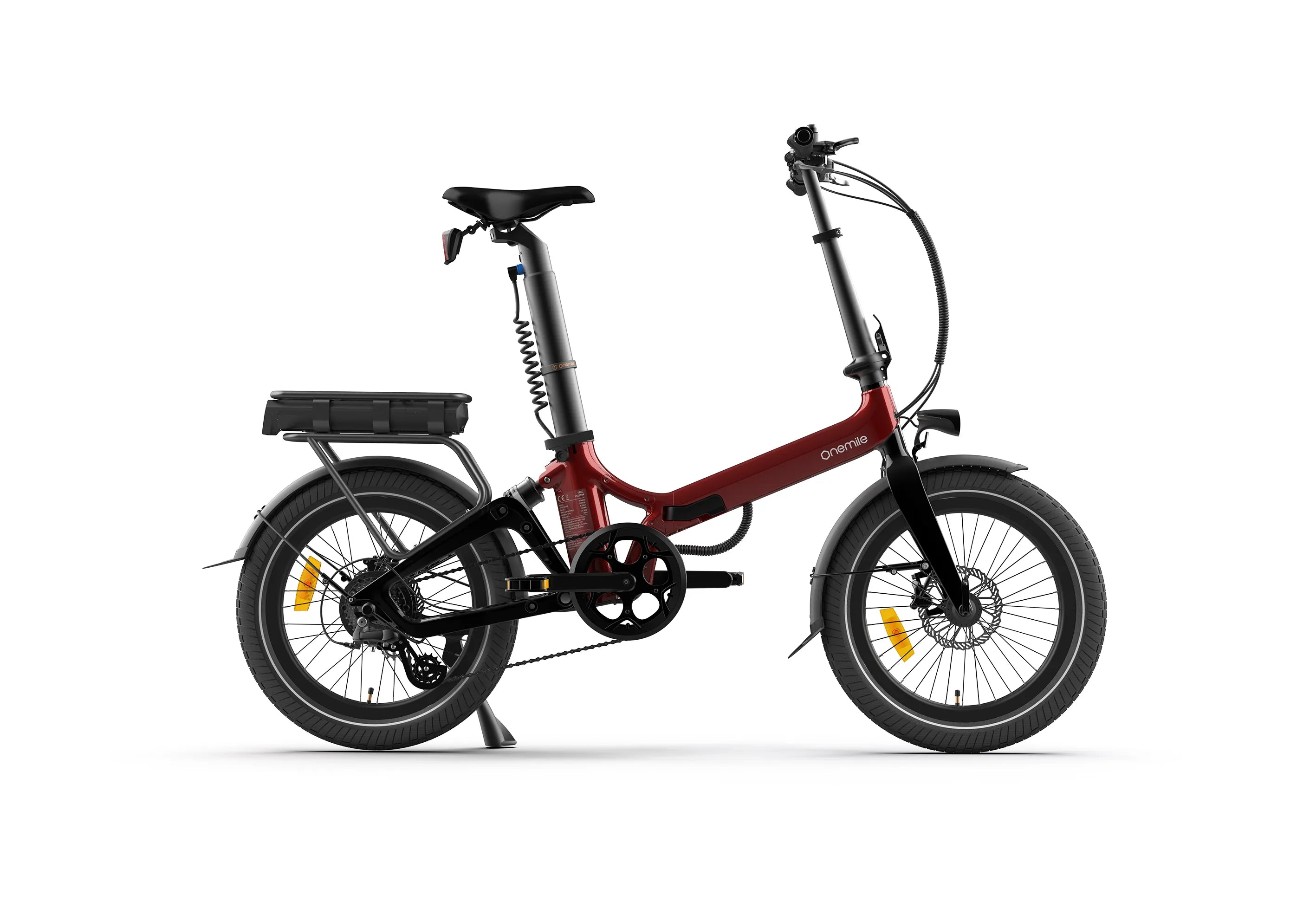

Onemile Nomad
- Up to 140 km Range(14.4Ah)
- One-piece Magnesium Frame
- Torque Sensor
- Shimano 7-Speed ALTUS
- Tektro Hydraulic Disc Brake
- Silent Helical Gear Motor(250W,55NM)
2 Year Warranty
Free Shipping
14-Day Returns
Fast Shipping in 48 Hrs

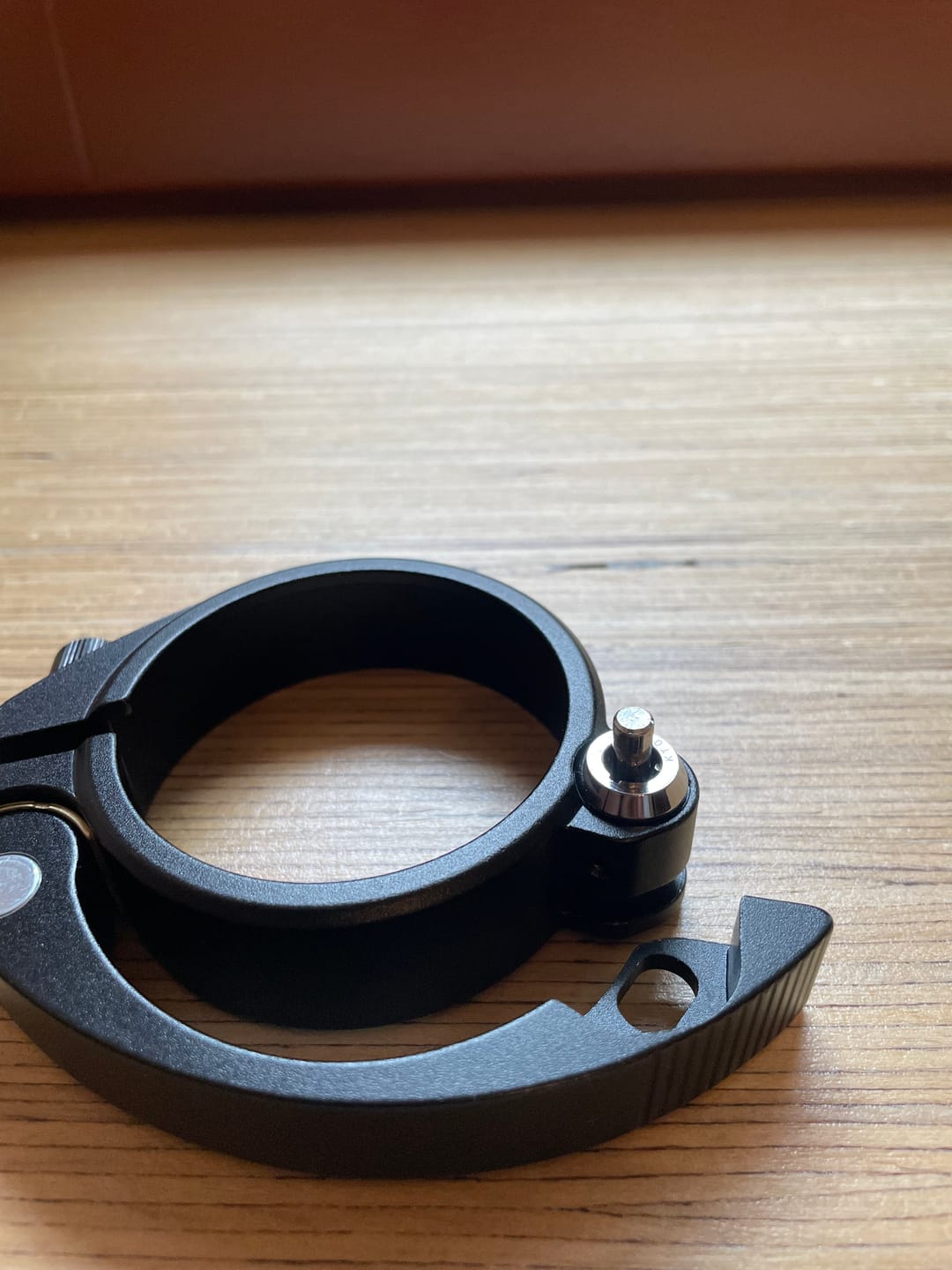

Enjoy Free Accessories with your Nomad: battery lock and rear carrier included at no extra cost!
Specifications
| Mechanical Specifications | |
|---|---|
| Product Name | Onemile Nomad |
| Battery | 36V 10AH Lithium battery (Samsung cell) |
| Motor | 250W Aikema Rear Wheel Hub Motor |
| Derailleur | Shimano 7-speed ALTUS 7S |
| Brake | Tektro Hydraulic Disc Brake 160mm Discs |
| Suspension | Rear Shock Absorber |
| Light | Front Daylight + Rear Backlight |
| Tyre | 20x2.25" Kenda puncture protection tire |
| Pedal Assist | Torque sensor |
| USB power port | Available |
| Frame Material | Magnesium Alloy |
| Technical Parameters | |
|---|---|
| Range | 120 km (Pedal assist mode Maximum range) |
| Top Speed | 25 km/h |
| Motor torque | 55Nm |
| Maximum Loading | 120 kg |
| Charger | 36V 2A, DC2.1 |
| Charging time | 6 hours |
| Net Weight | 17.9 kg (without battery) |
| Speed Mode | Five Level (0-5 PAS mode) |
| Waterproof level | IP65 |
| Warranty Information | |
|---|---|
| Frame | 3 years |
| Parts | 2 years |
| Battery | 2 years |
| Terms & Conditions | This warranty only applies to the original owner of a Onemile Nomad e-bike and is limited to the replacement of defective parts |
Dimensions
| Item Size | |
|---|---|
| A | Length/1630mm |
| B | Height/1200mm |
| C | Wide/630mm |
| D | Seat Safe Height/900+mm |
| E | Length(Folding)/930mm |
| F | Height(Folding)/750mm |
| G | Wide(Folding)/450mm |
| H | Rider Height Guide: 14.4Ah for 165cm+ & 10Ah for 150cm+ |
What's in the box?
| Package Contents | |
|---|---|
| 1 | Nomad Frame x 1 |
| 2 | Battery x 1 |
| 3 | User Manual x 1 |
| 4 | Pedal x 2 |
| 5 | Multitool x 1 |
| 6 | Charger x 1 |
| 7 | Security strap x 1 |

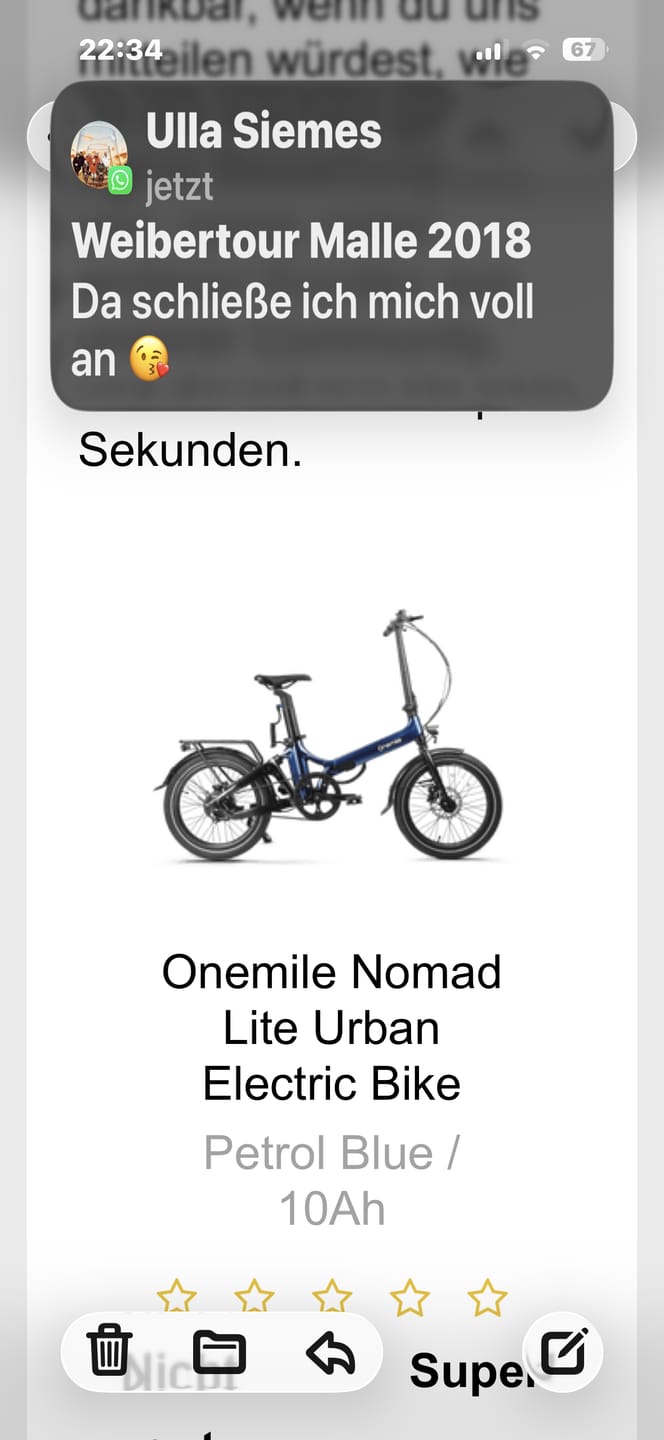

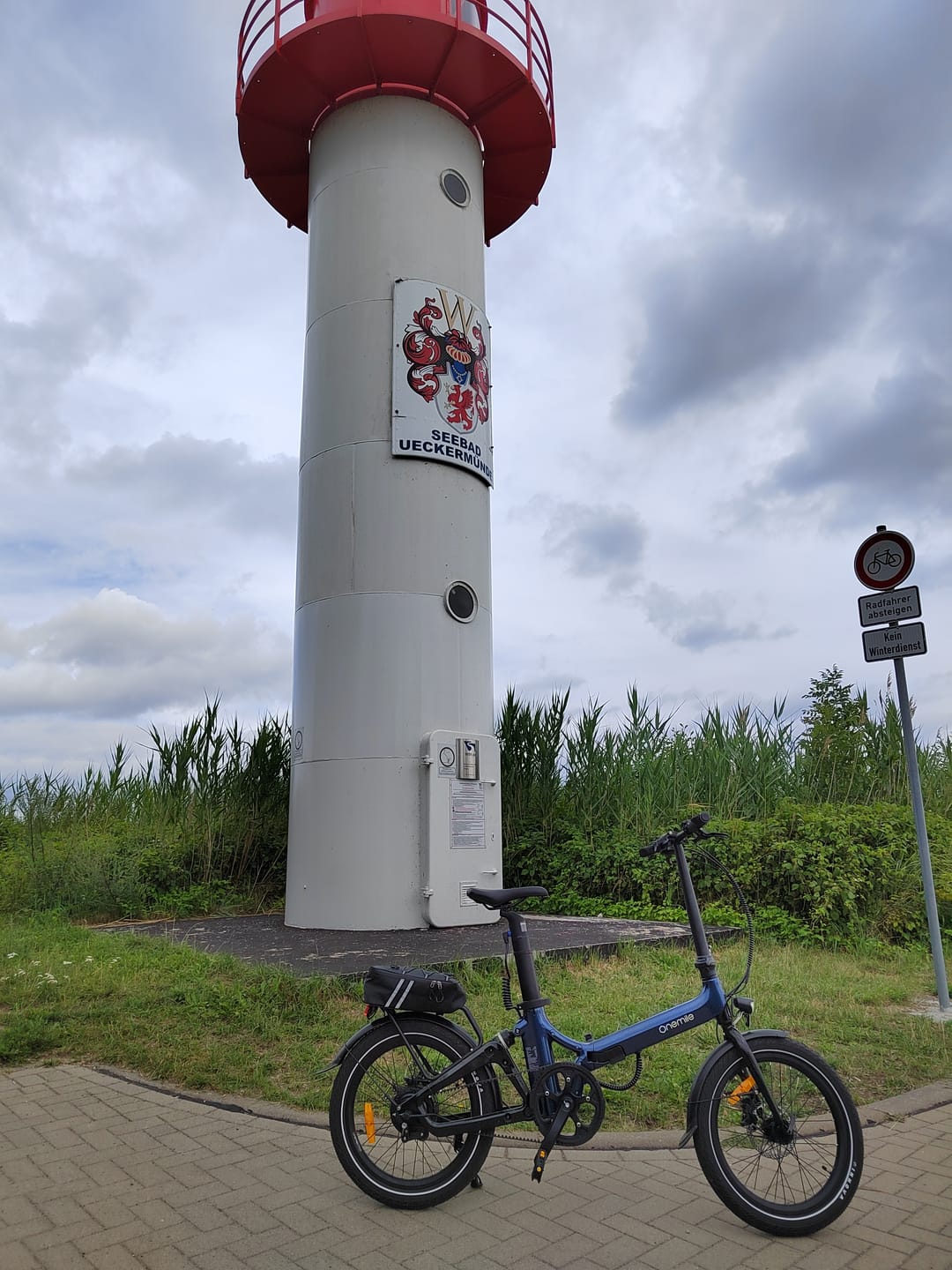

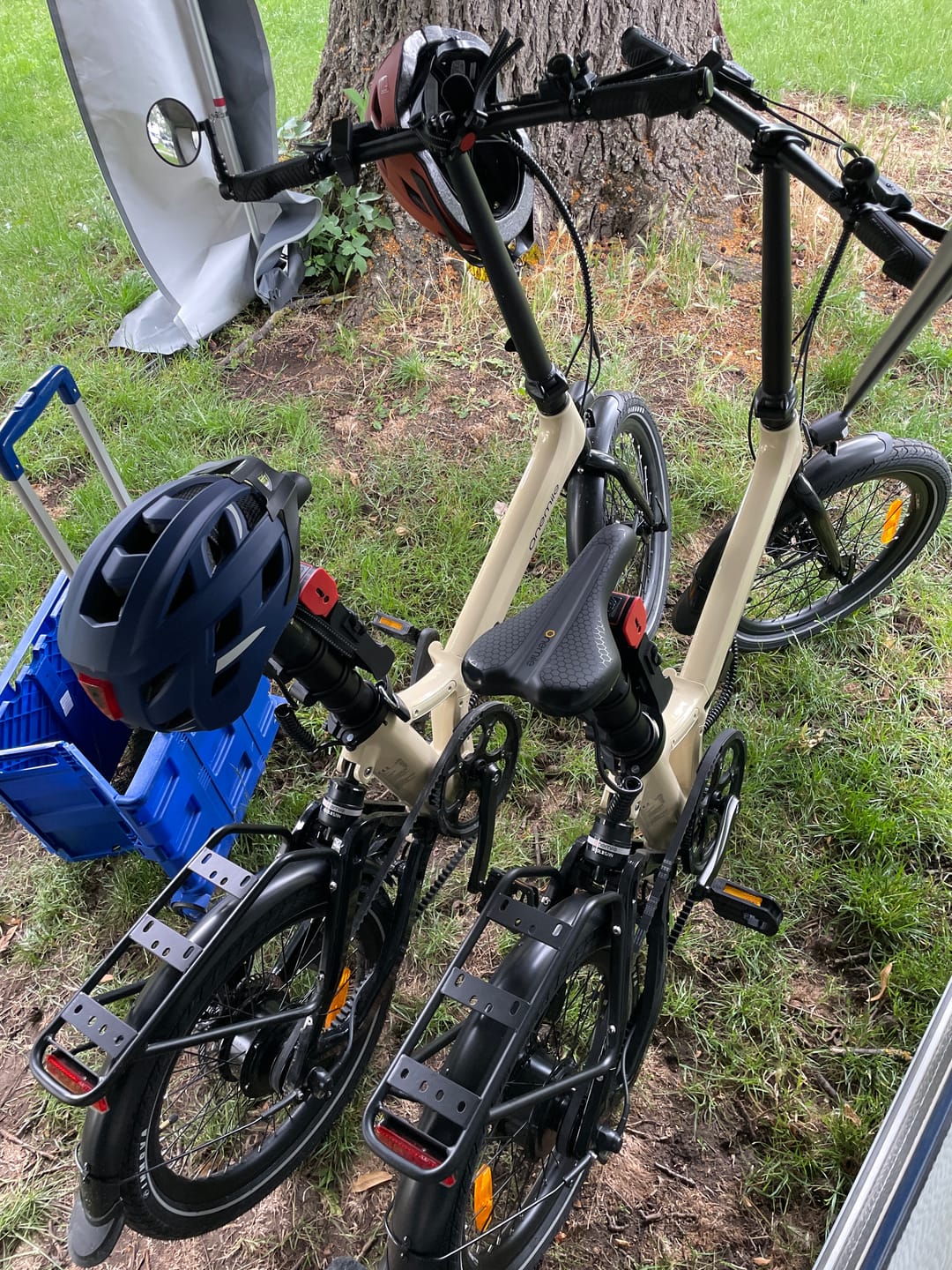

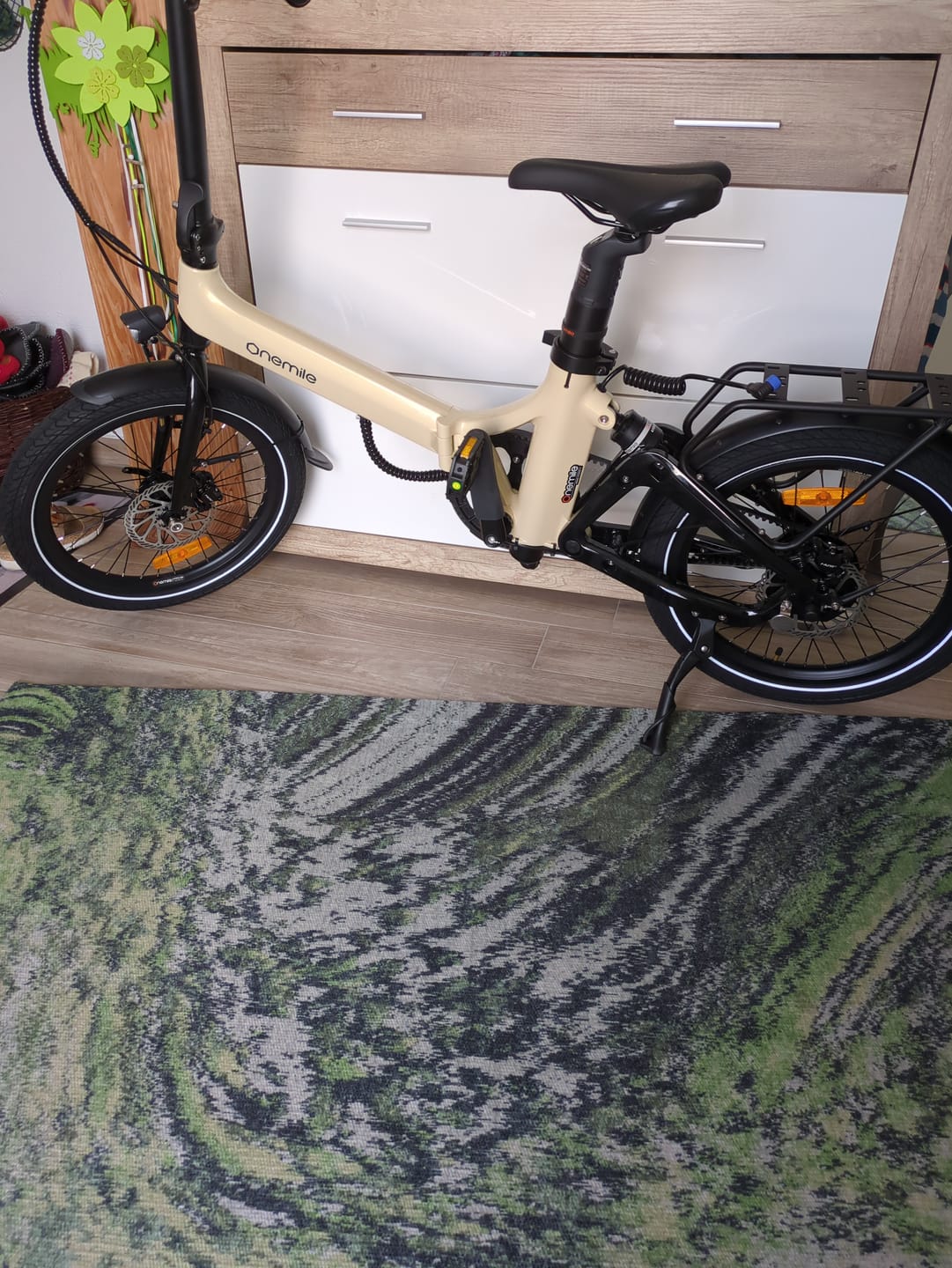

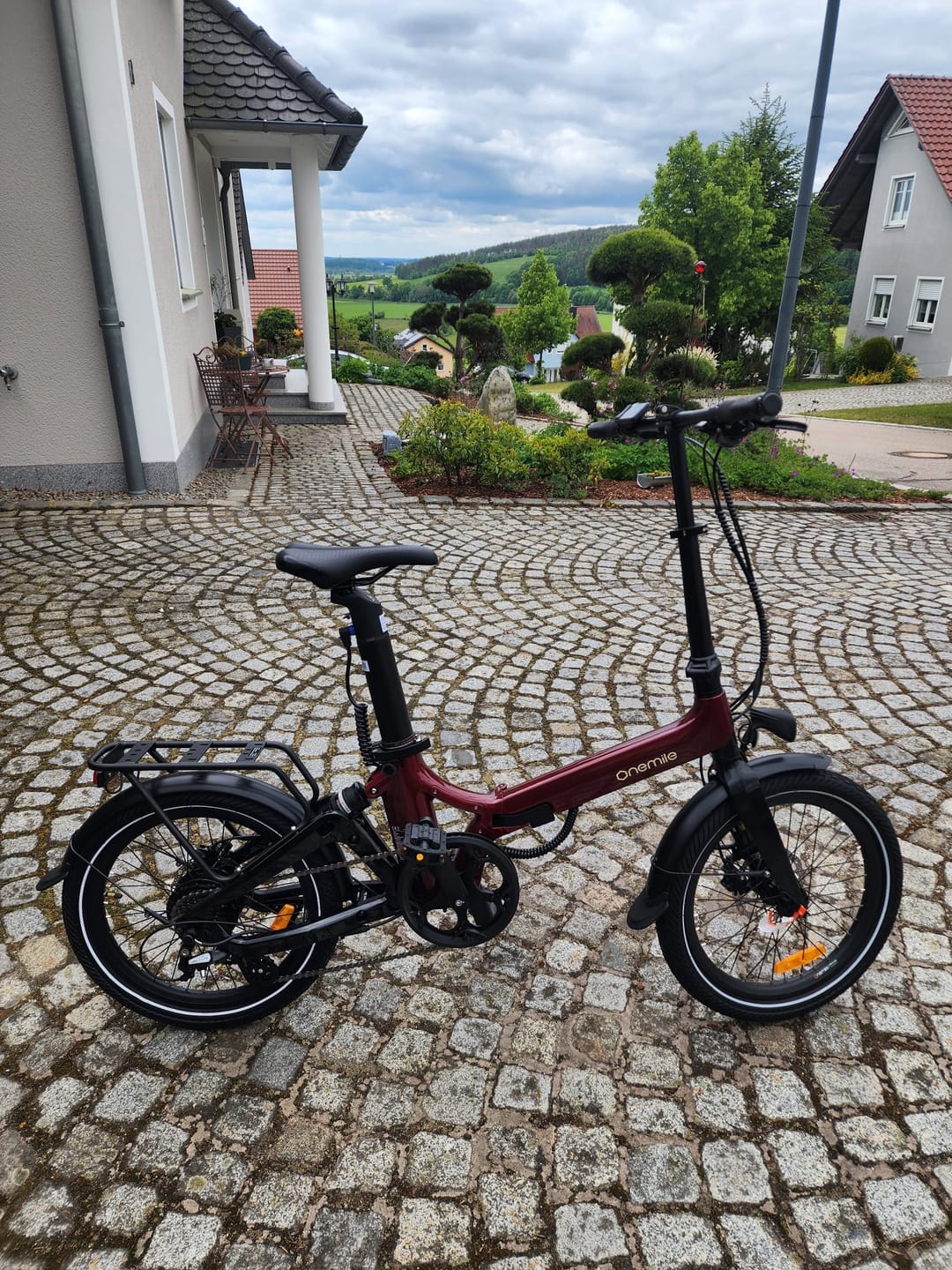

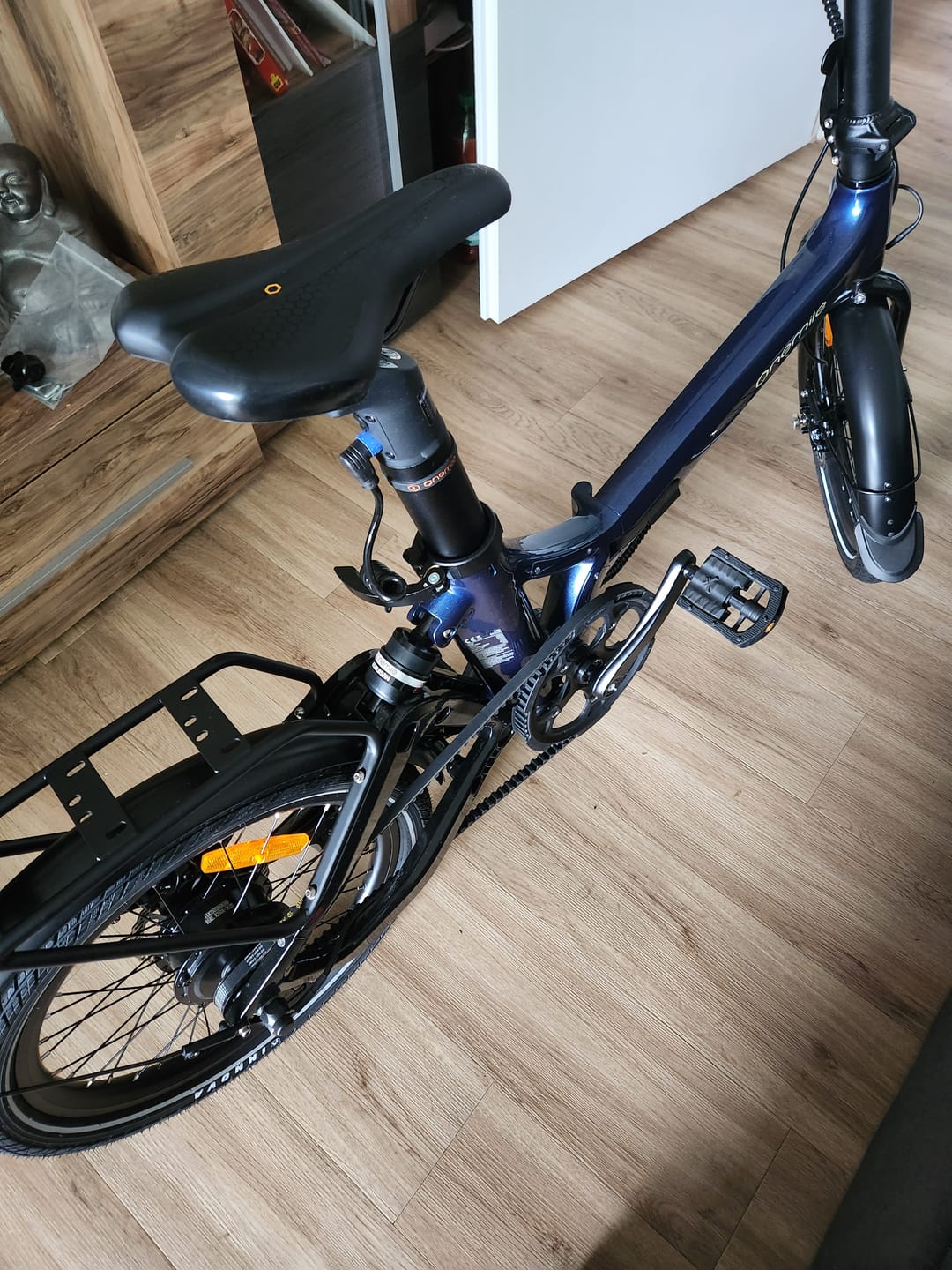

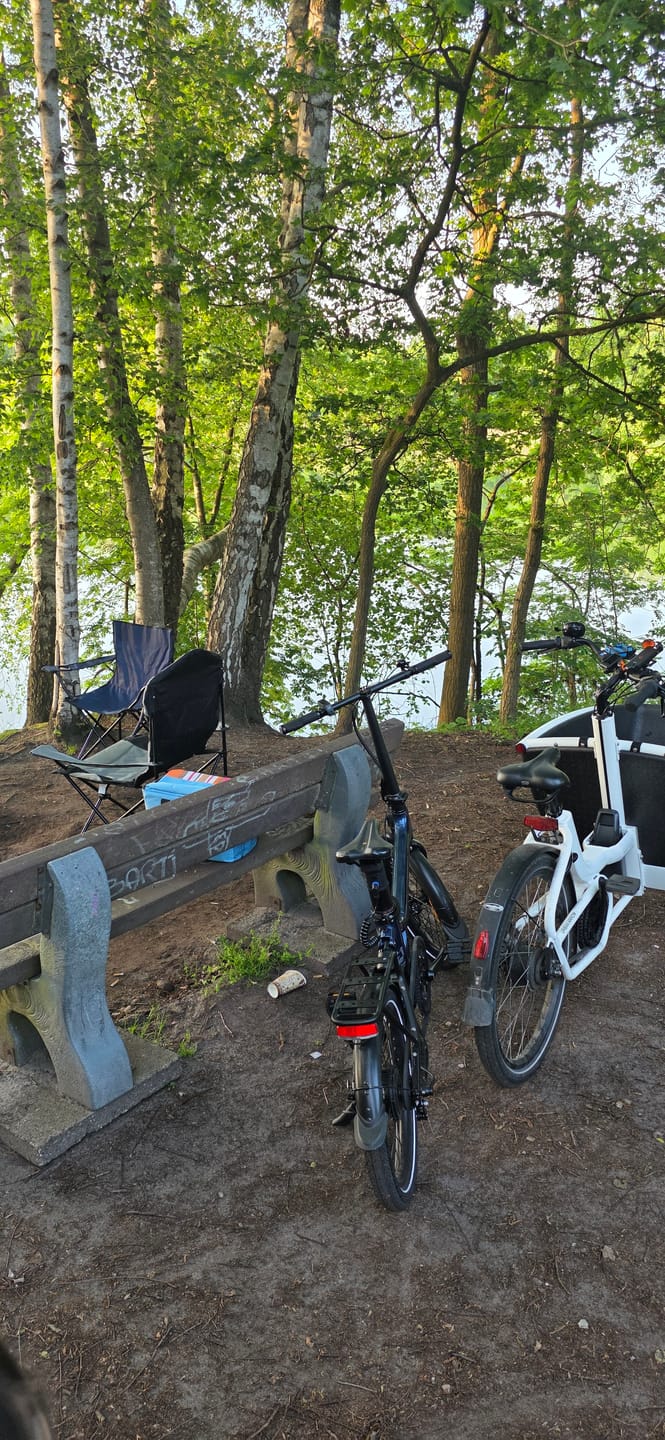

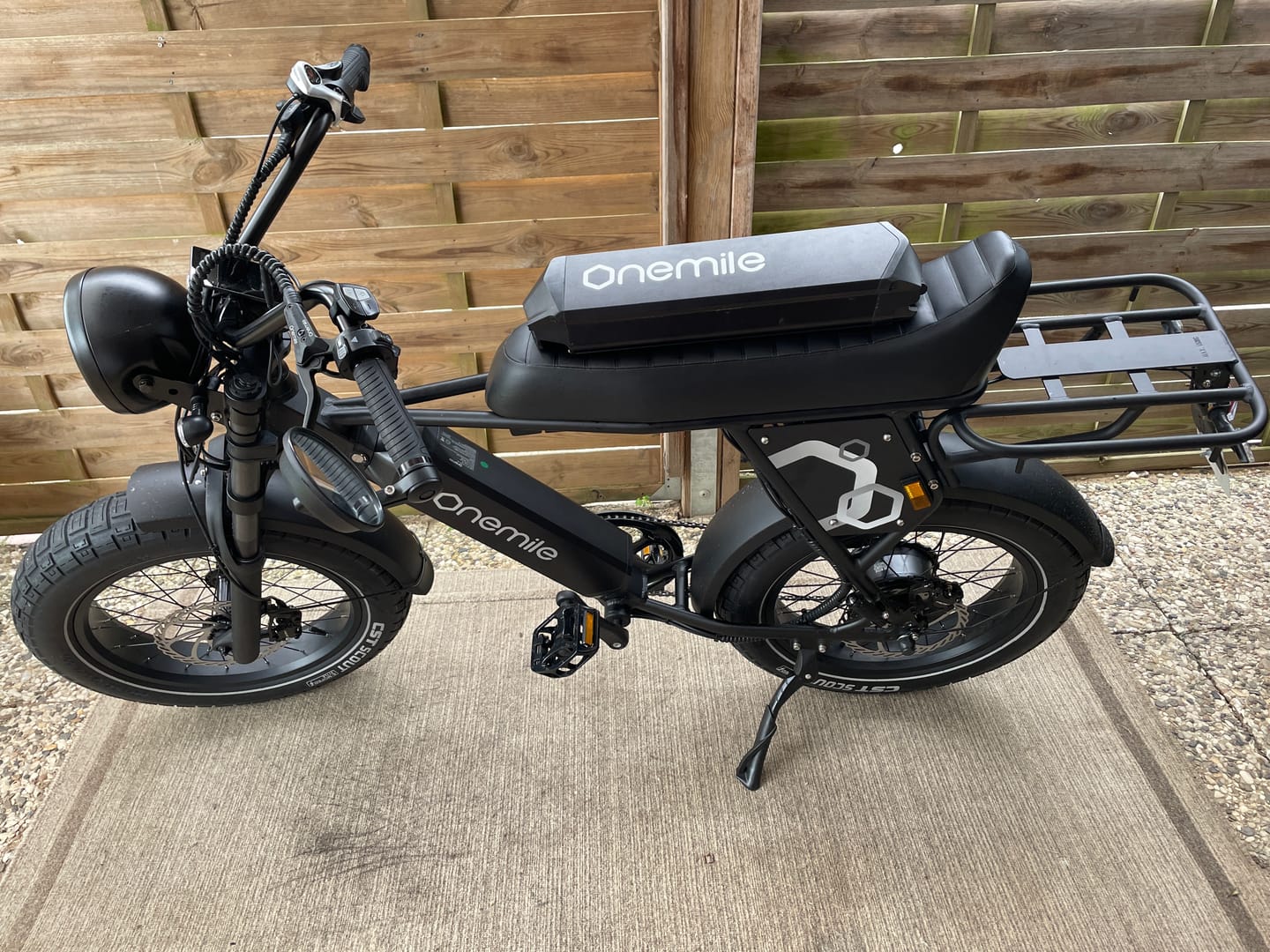

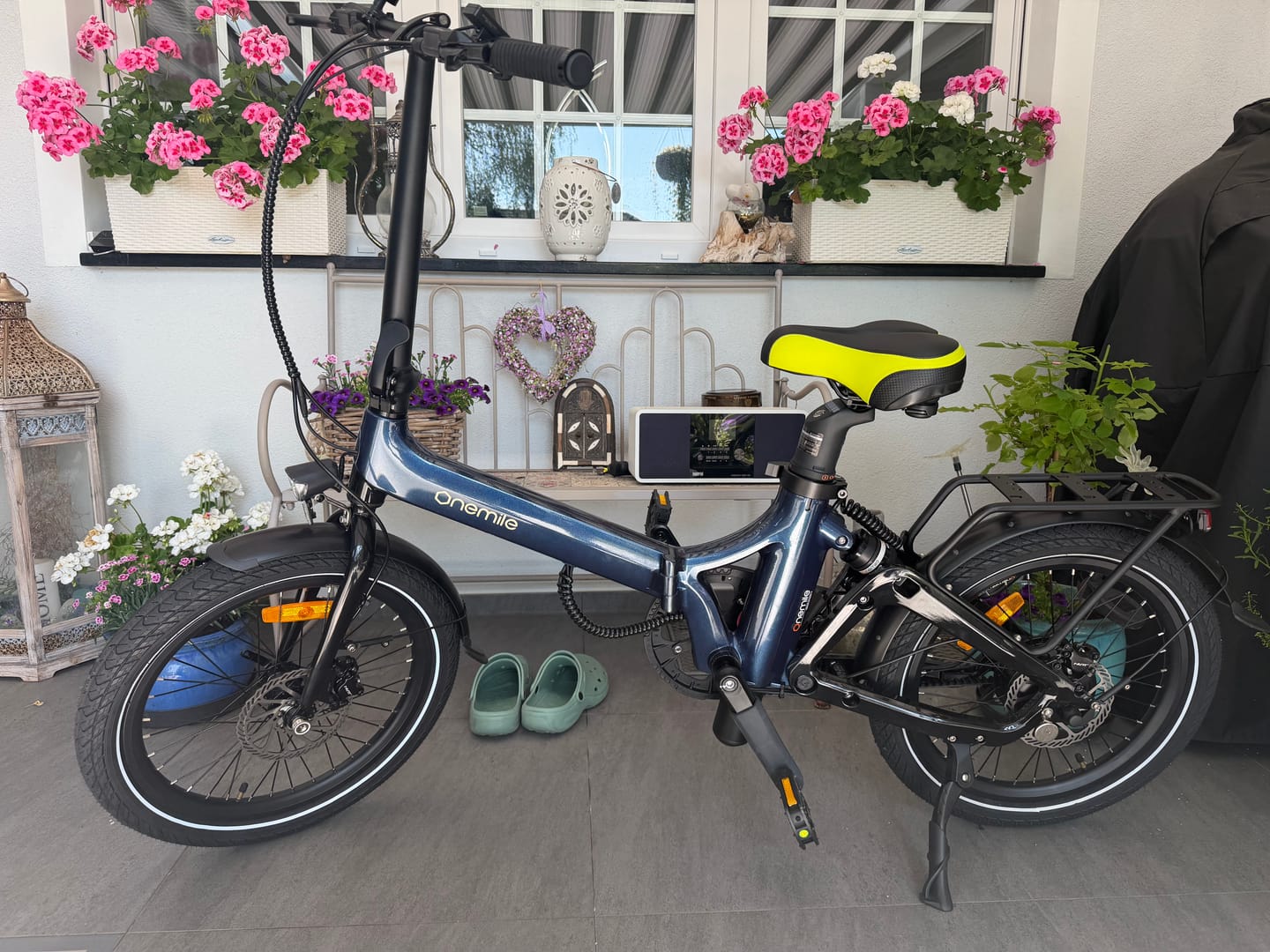

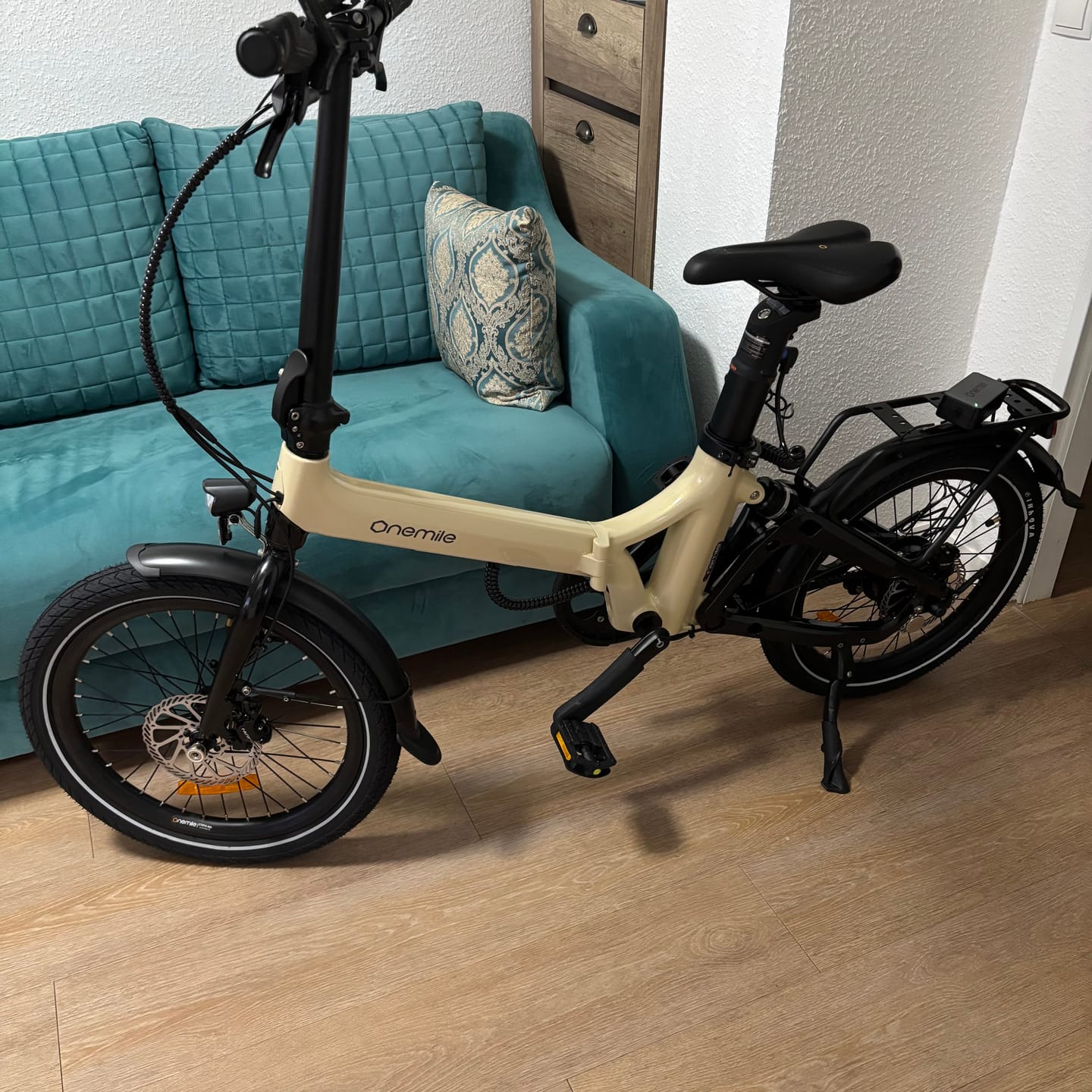

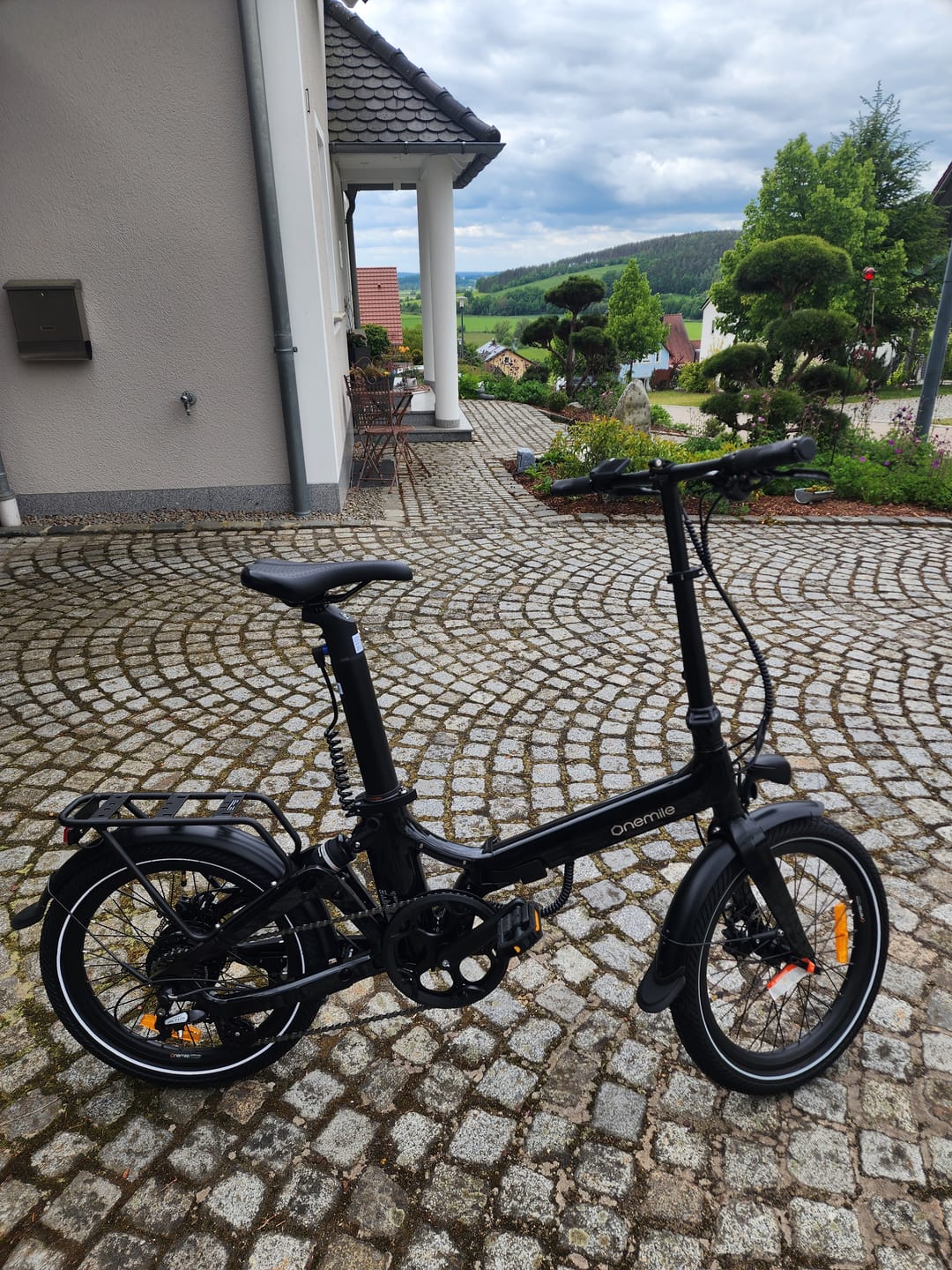

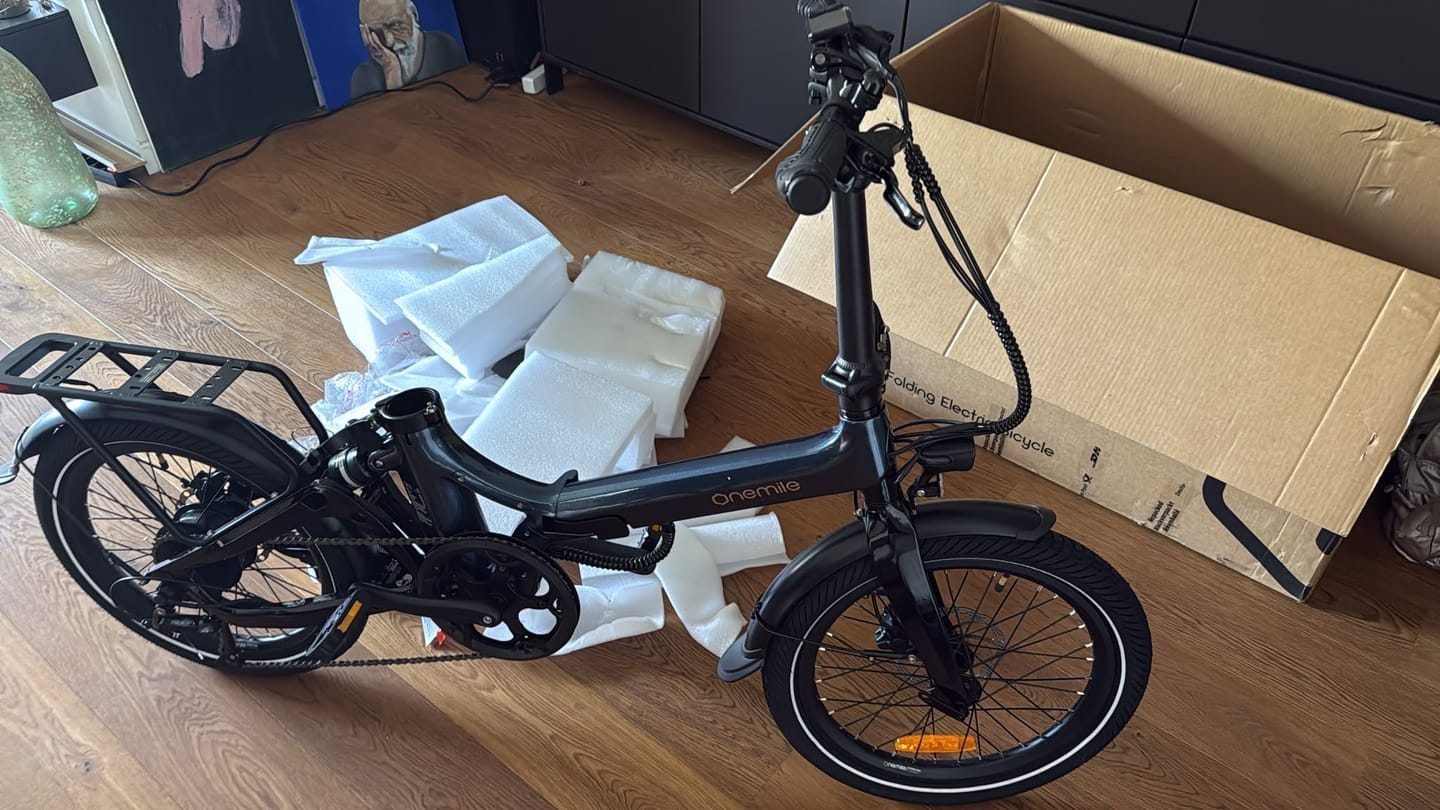

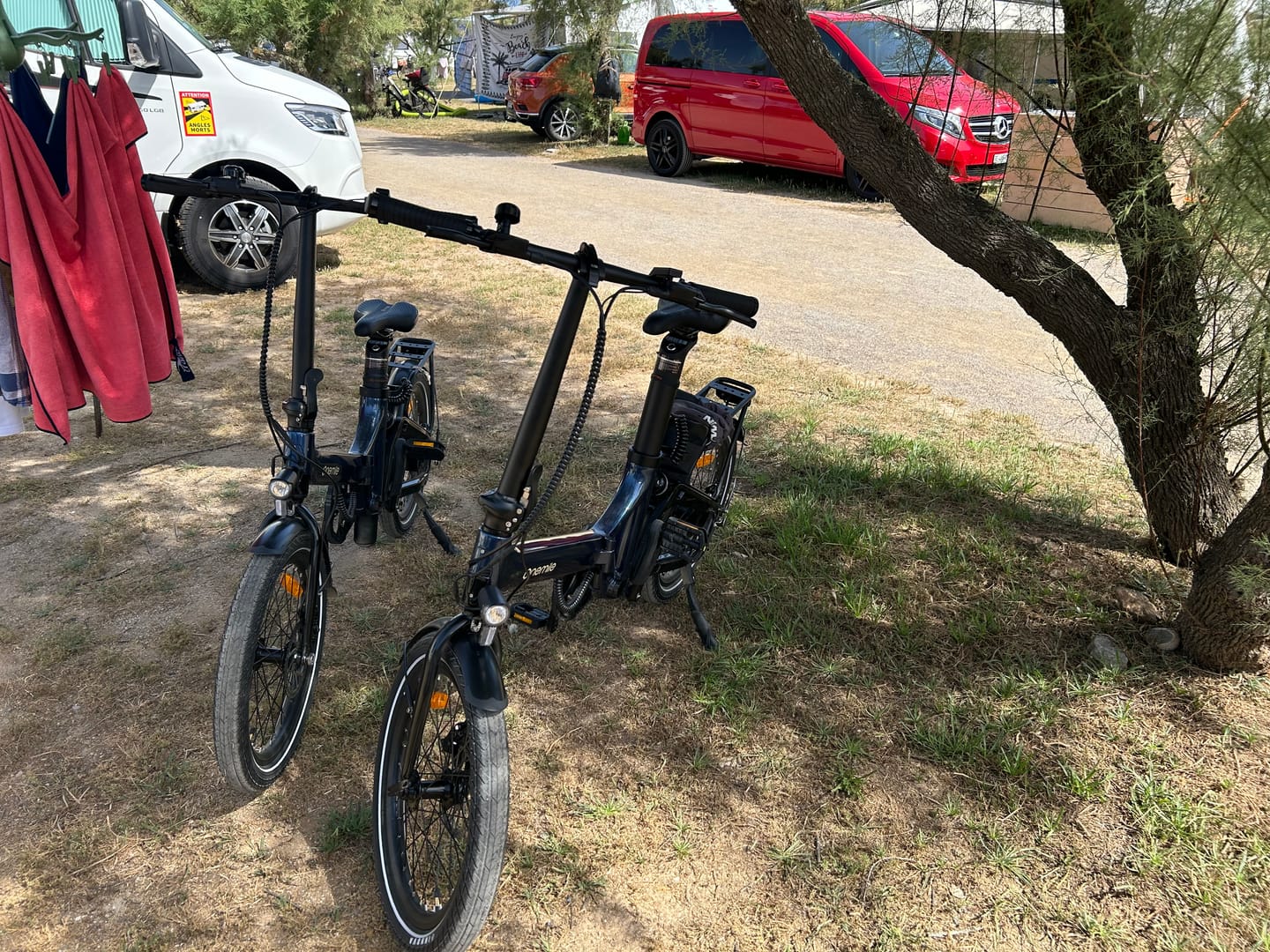

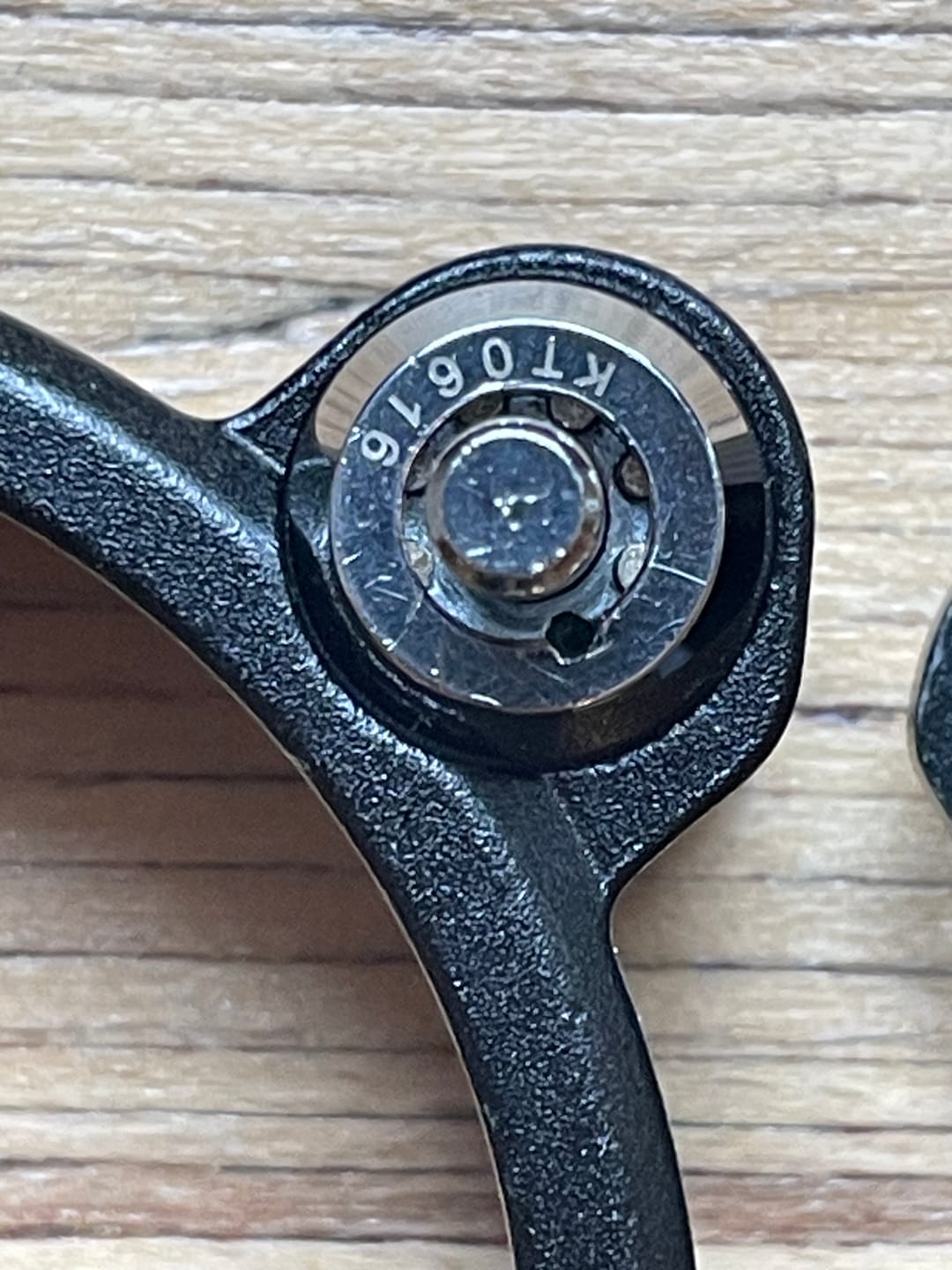

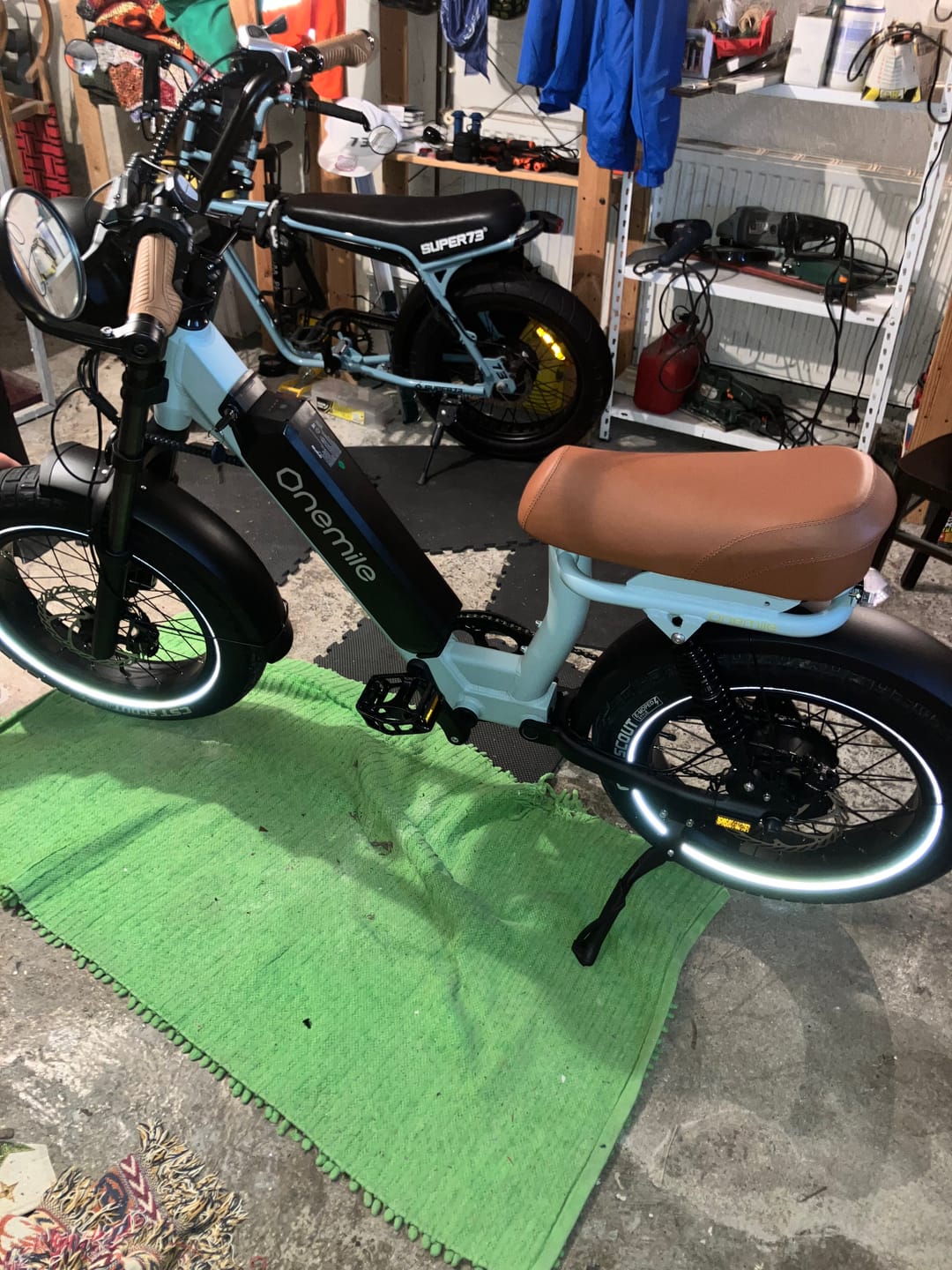

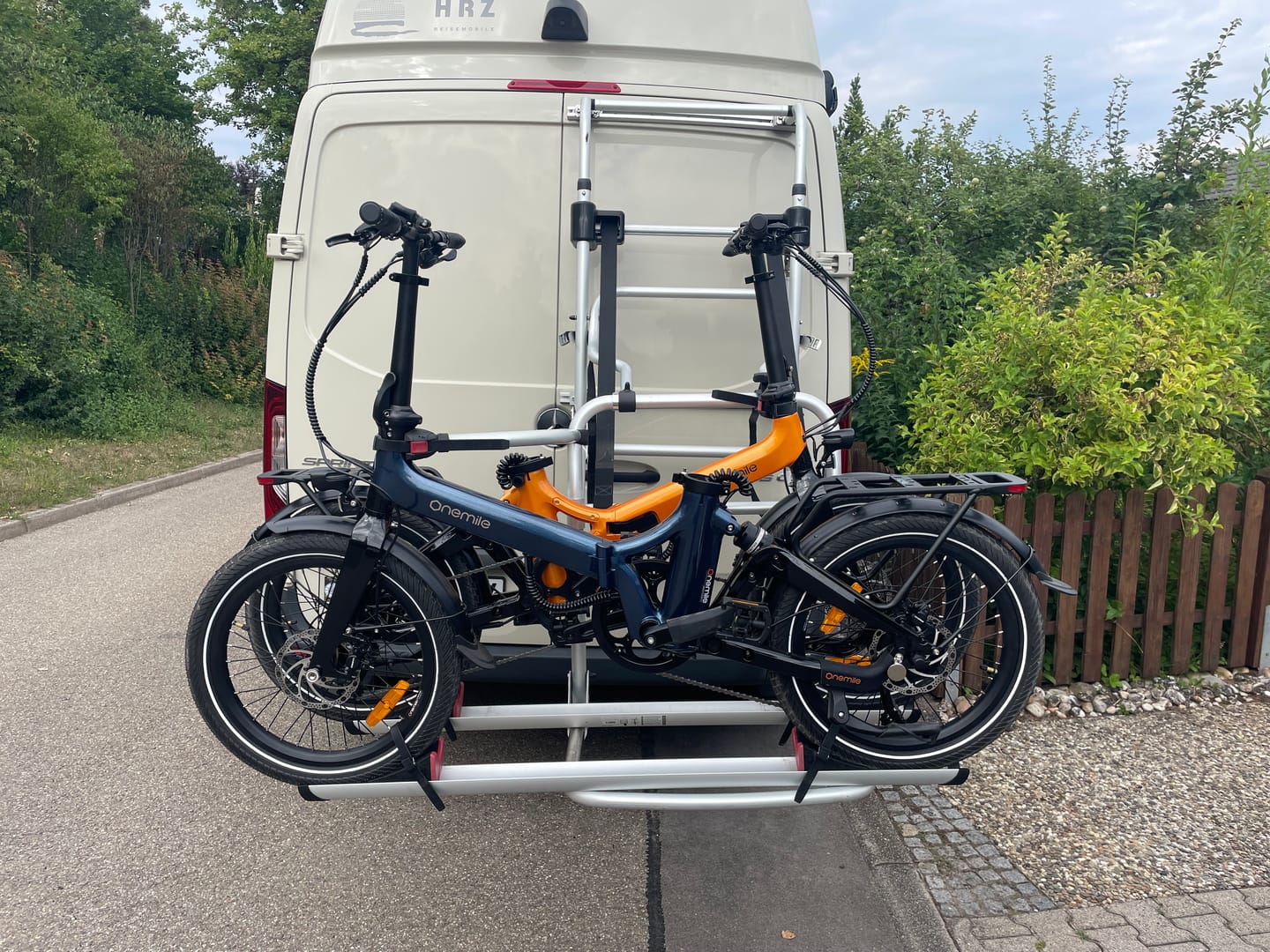

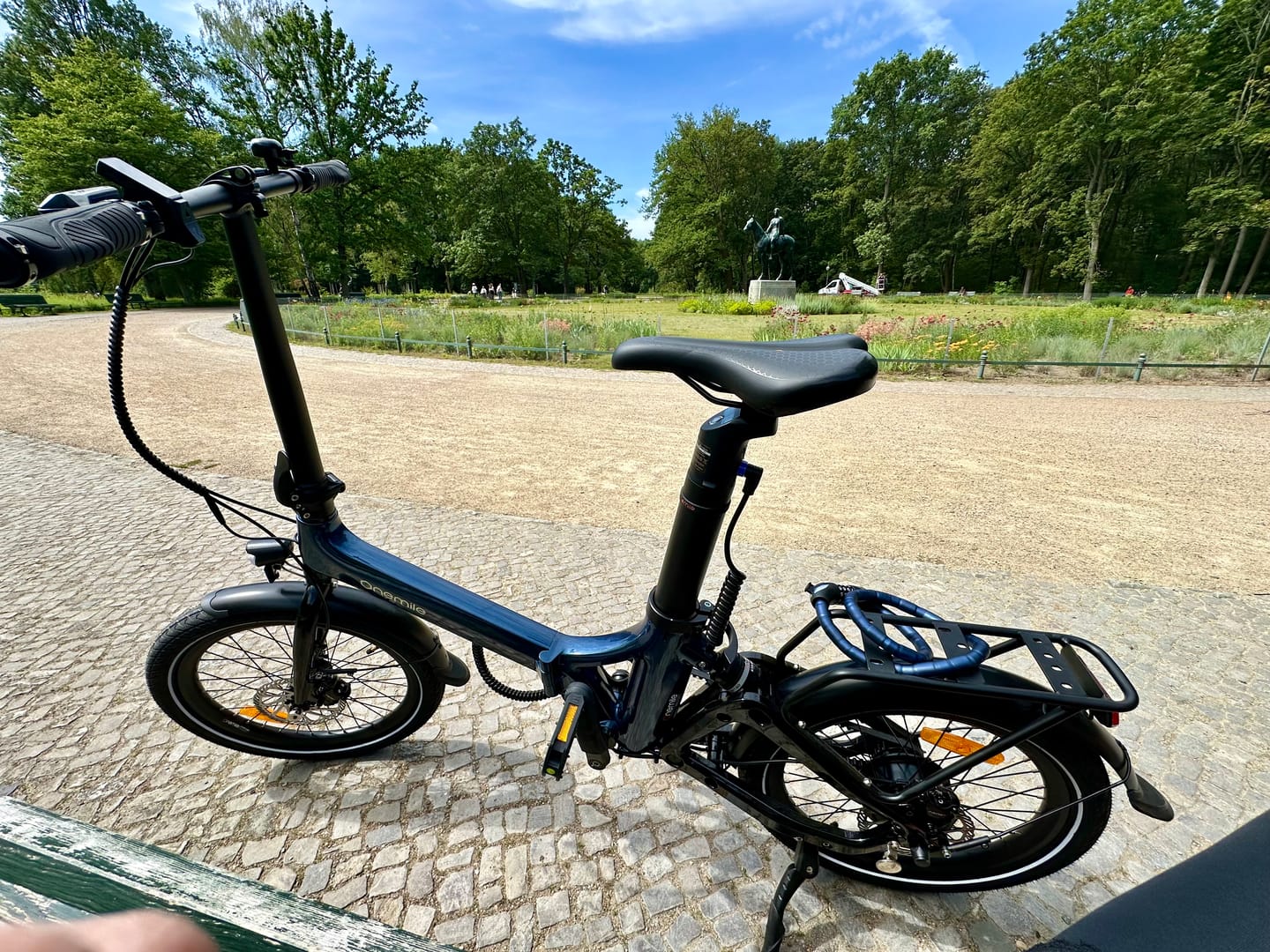

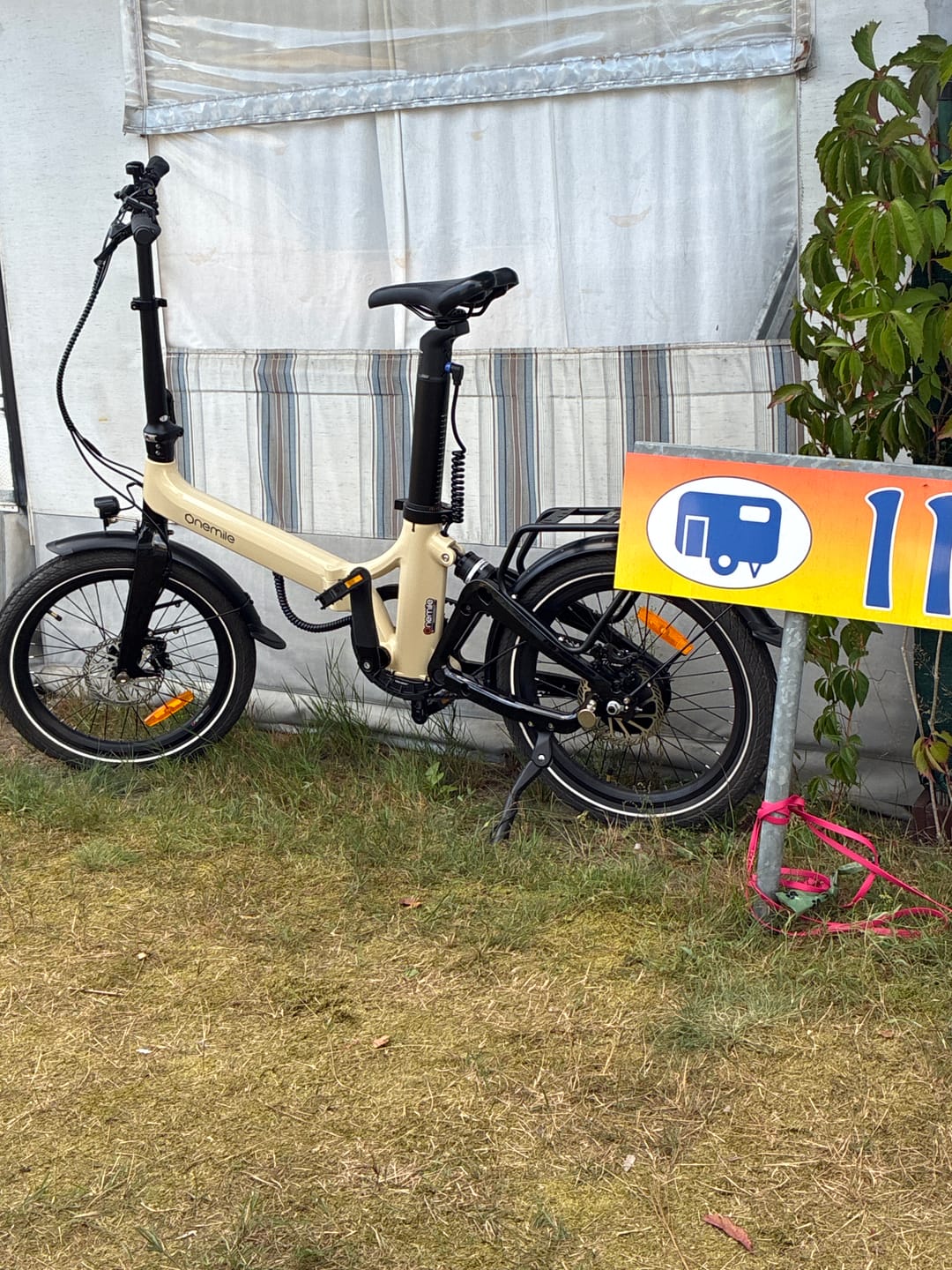

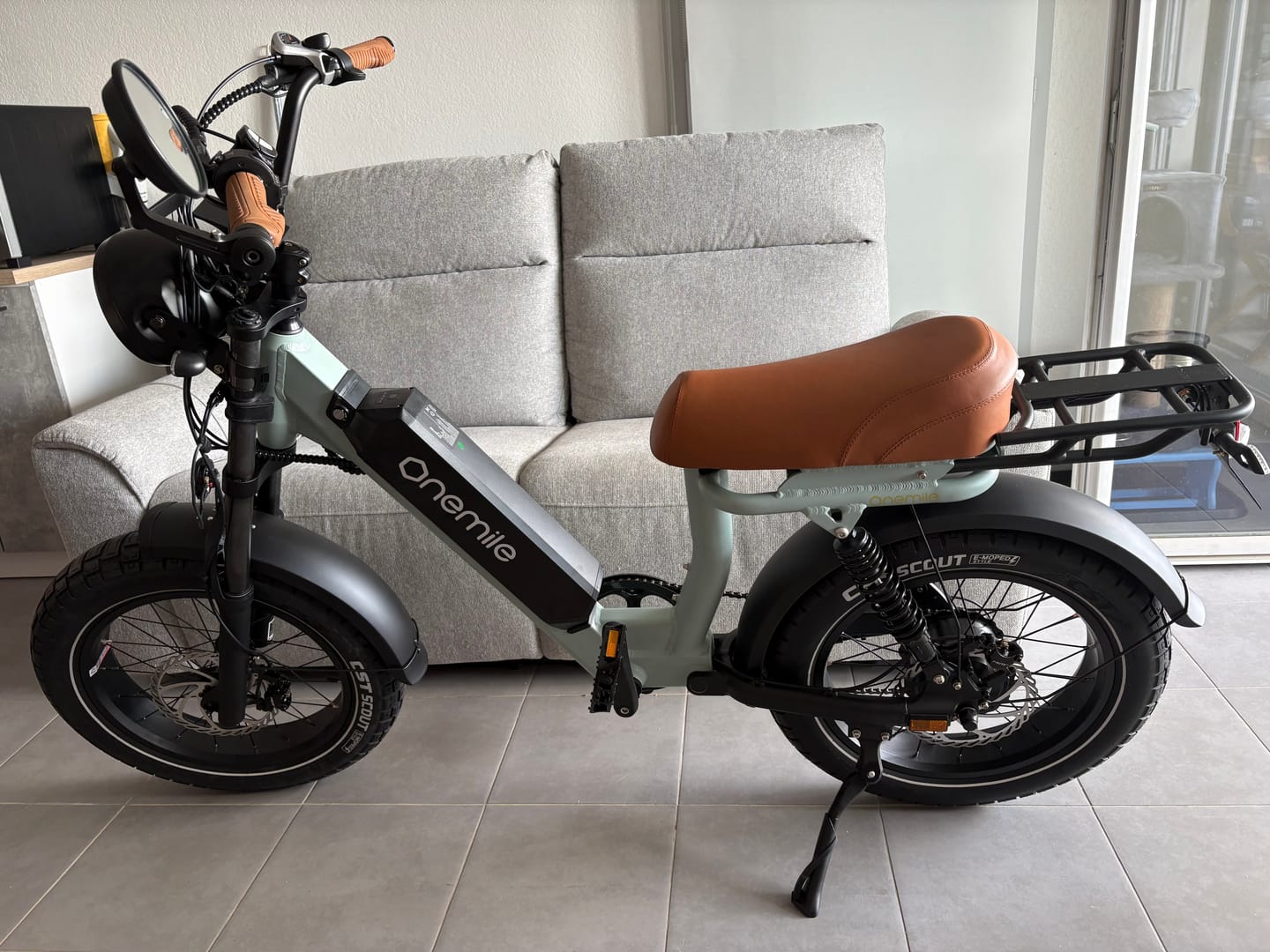

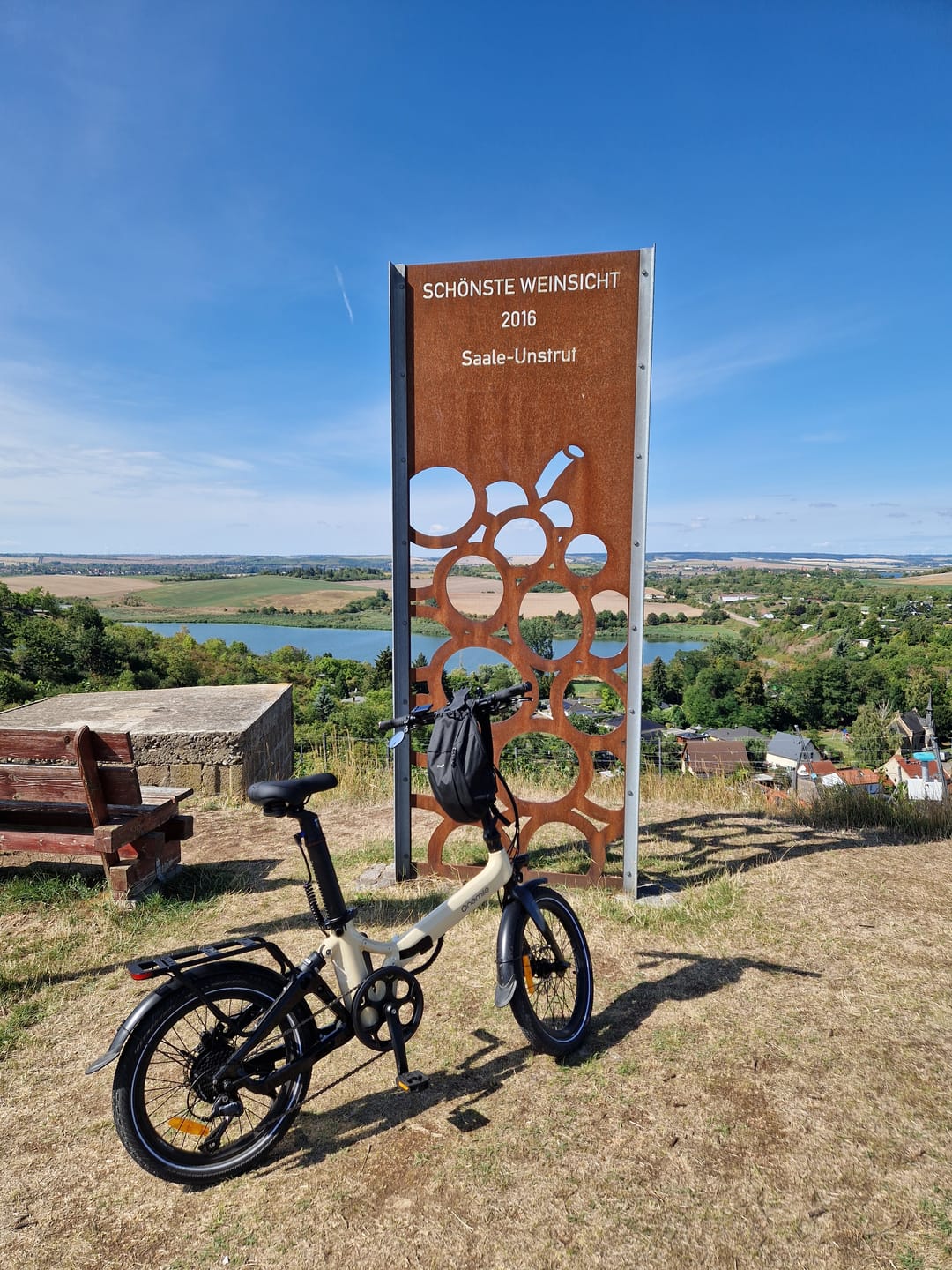

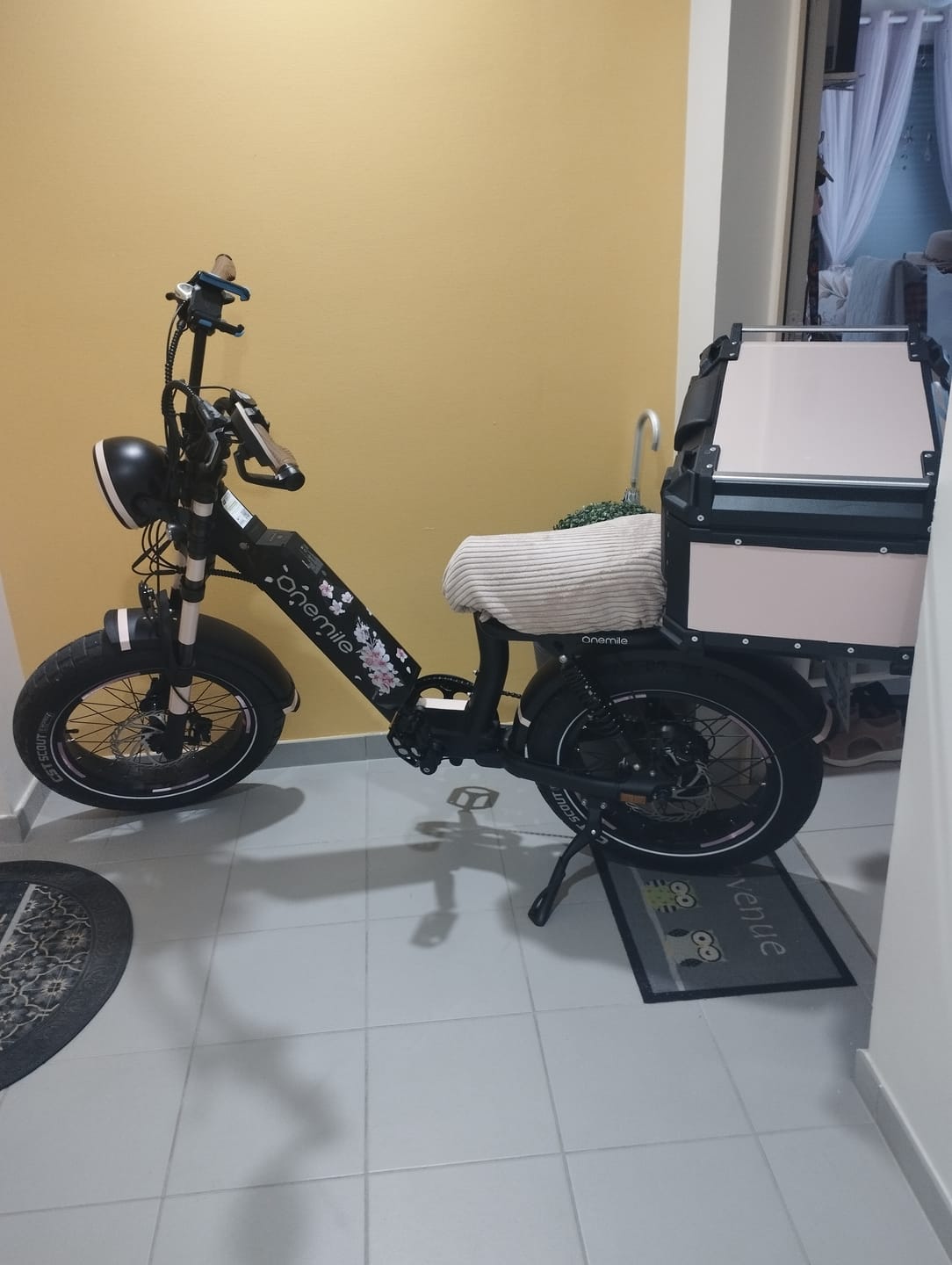

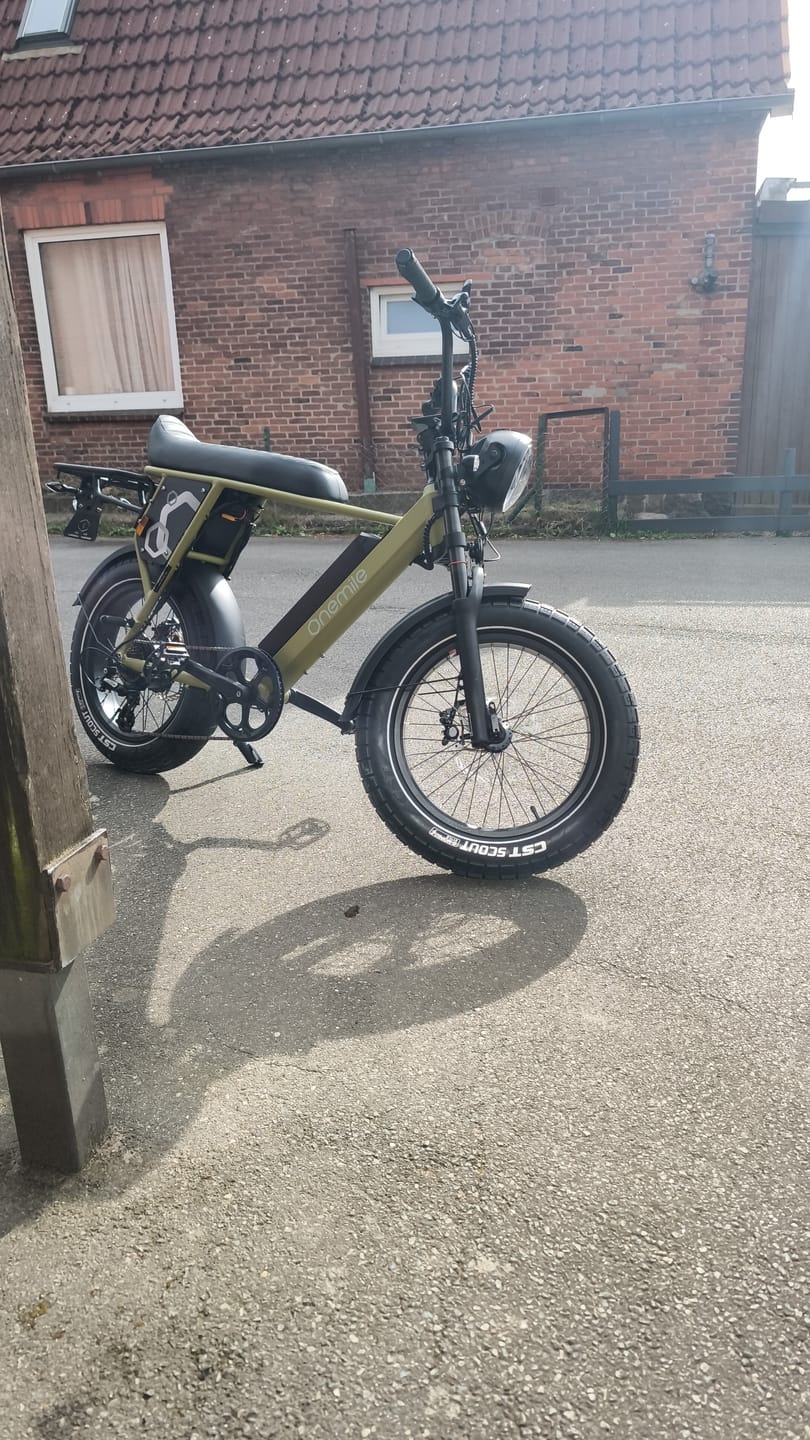

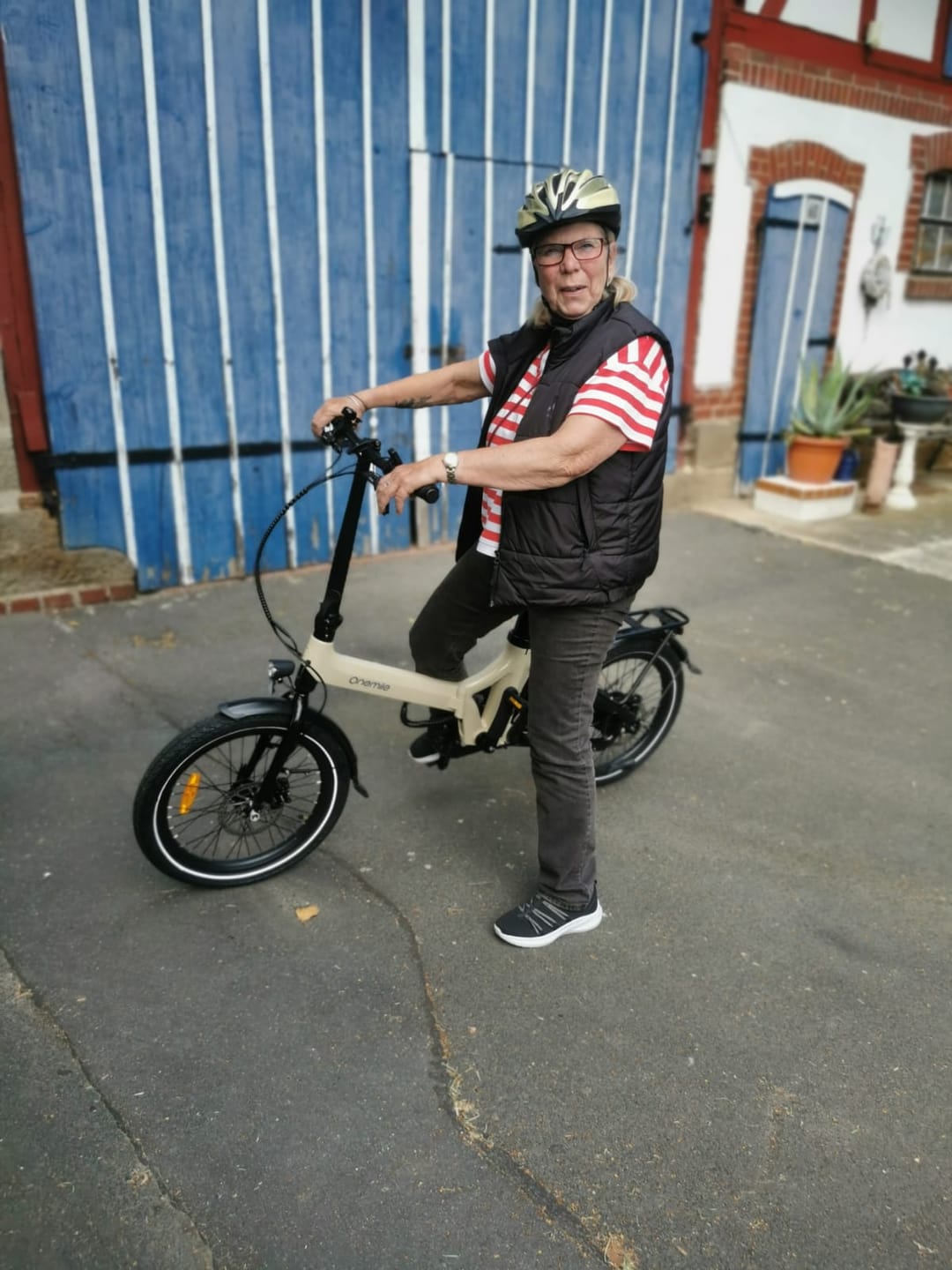

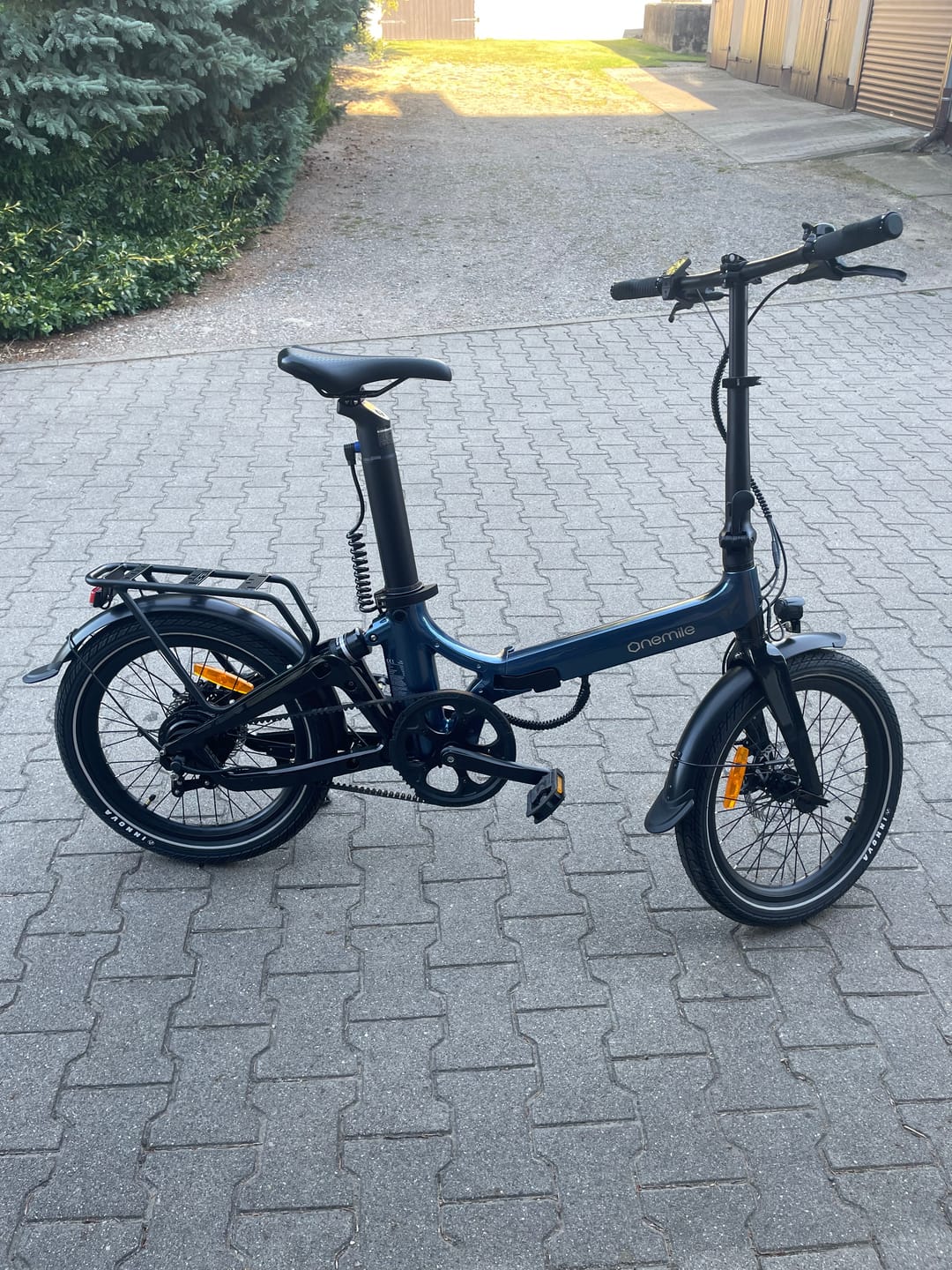

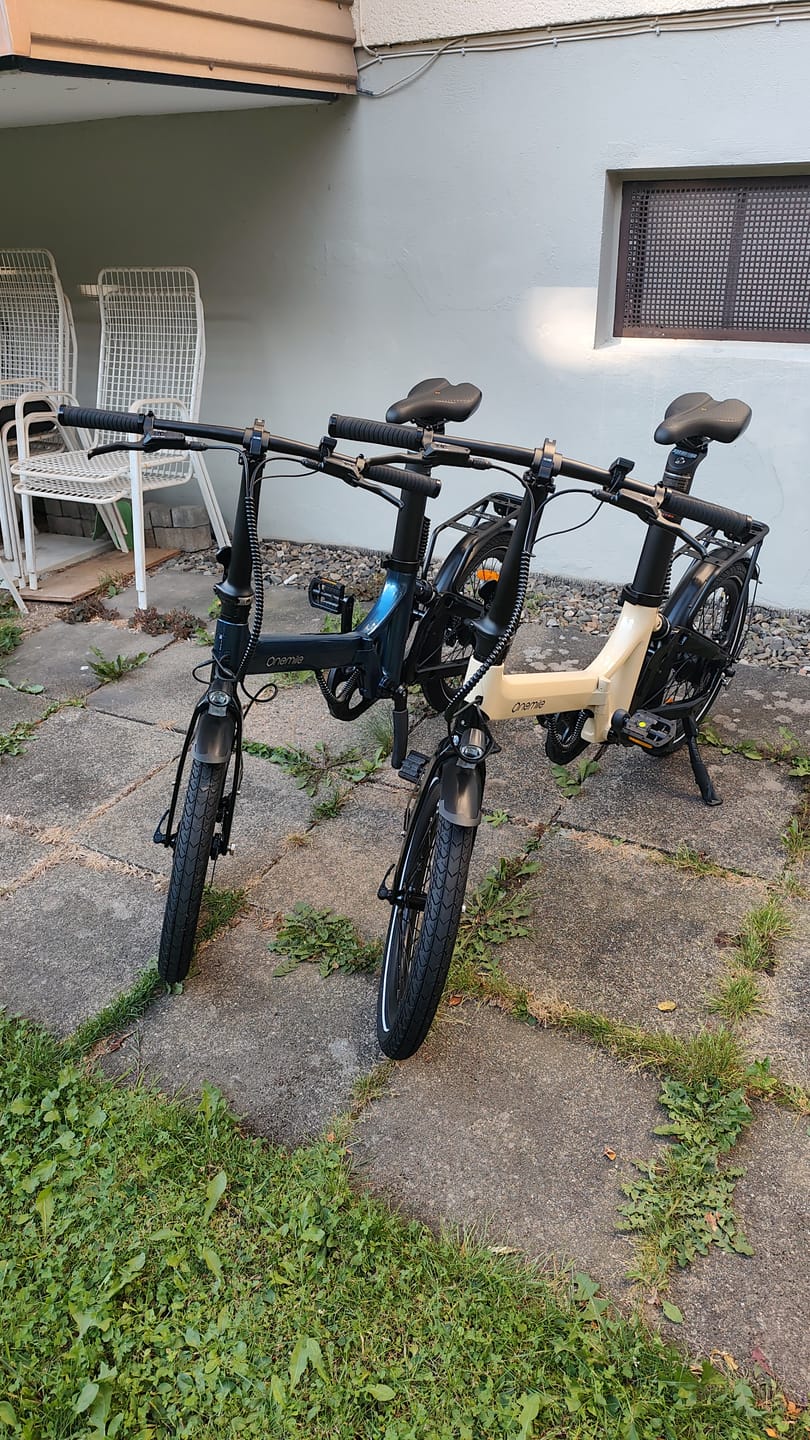

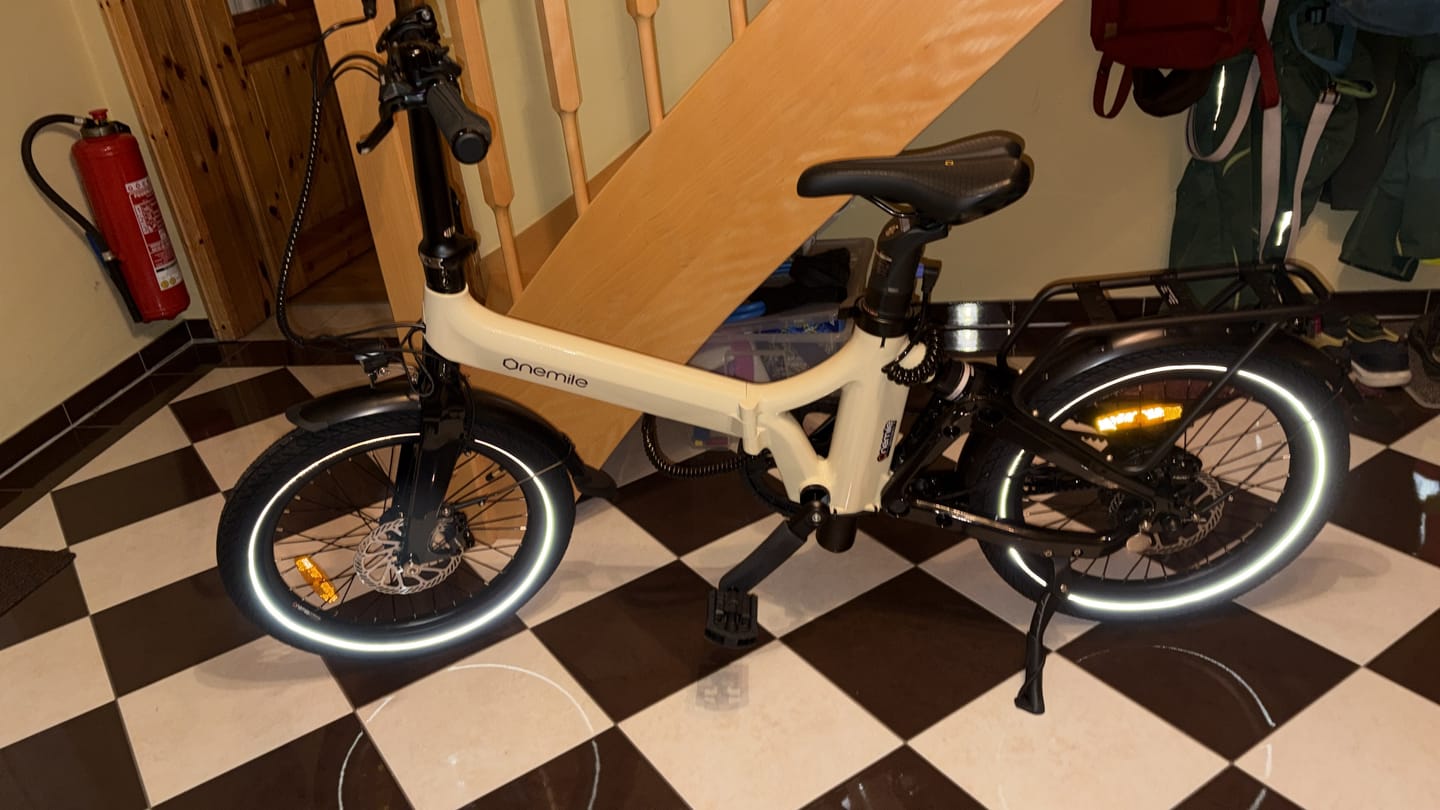

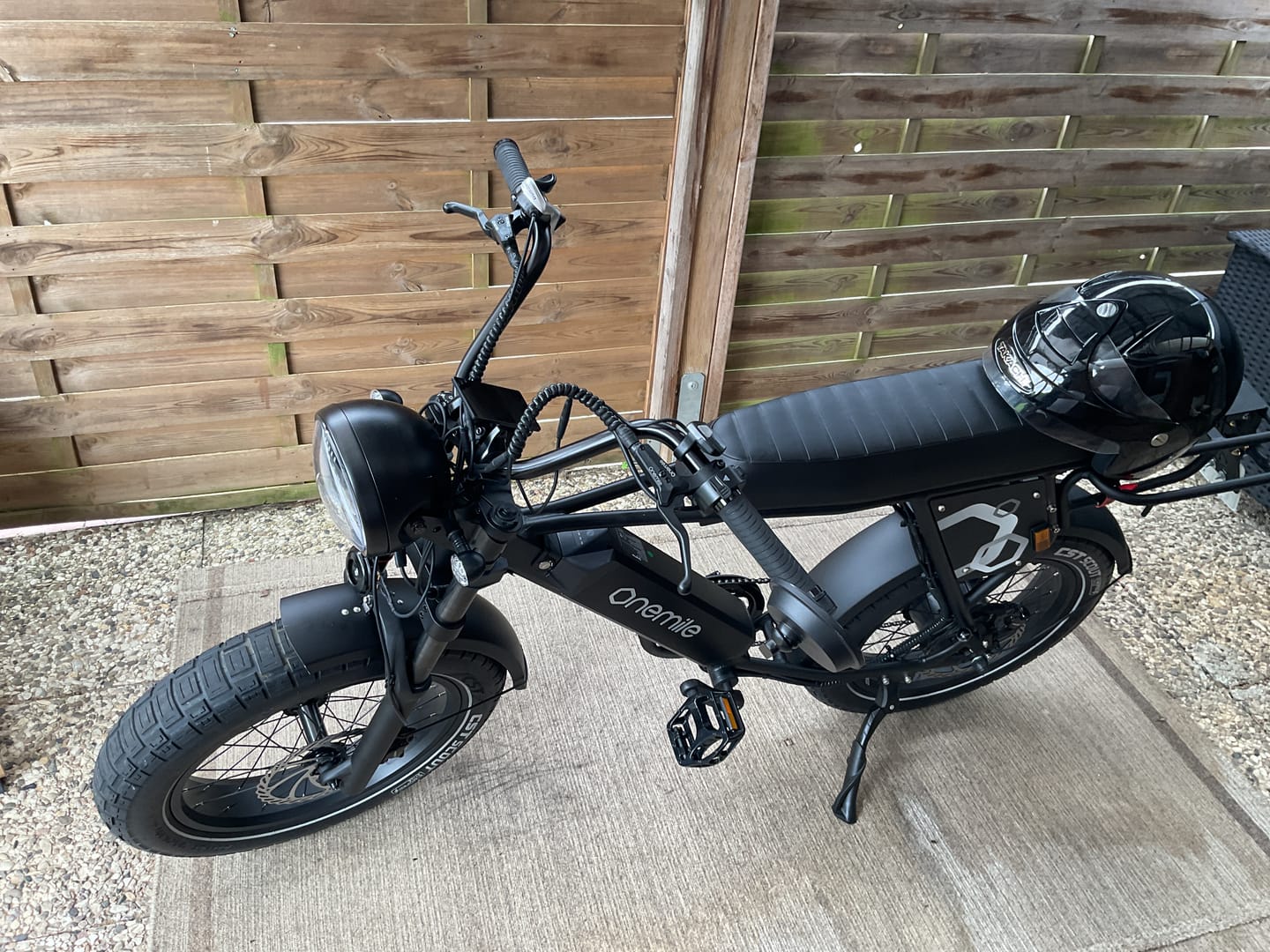

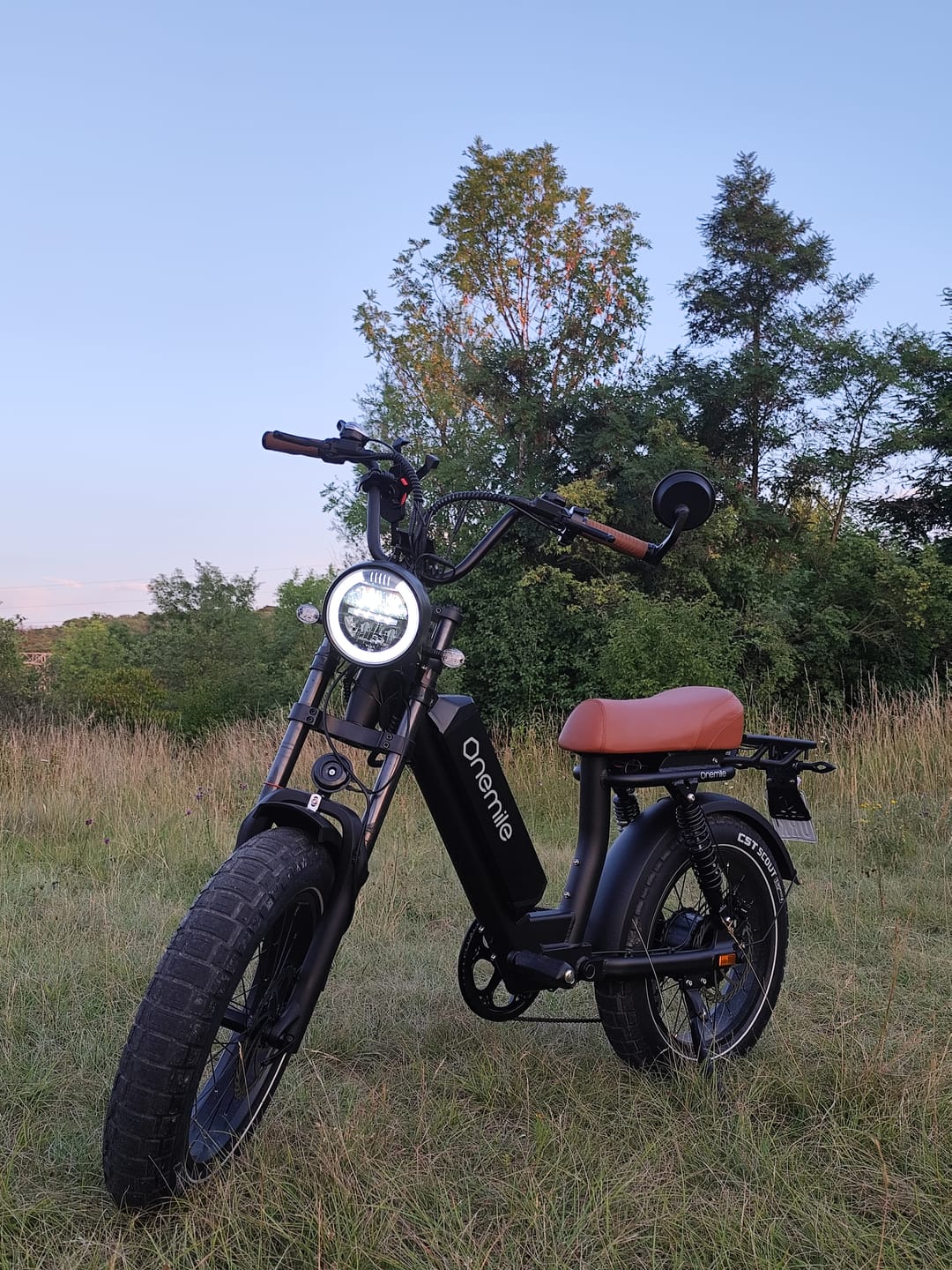

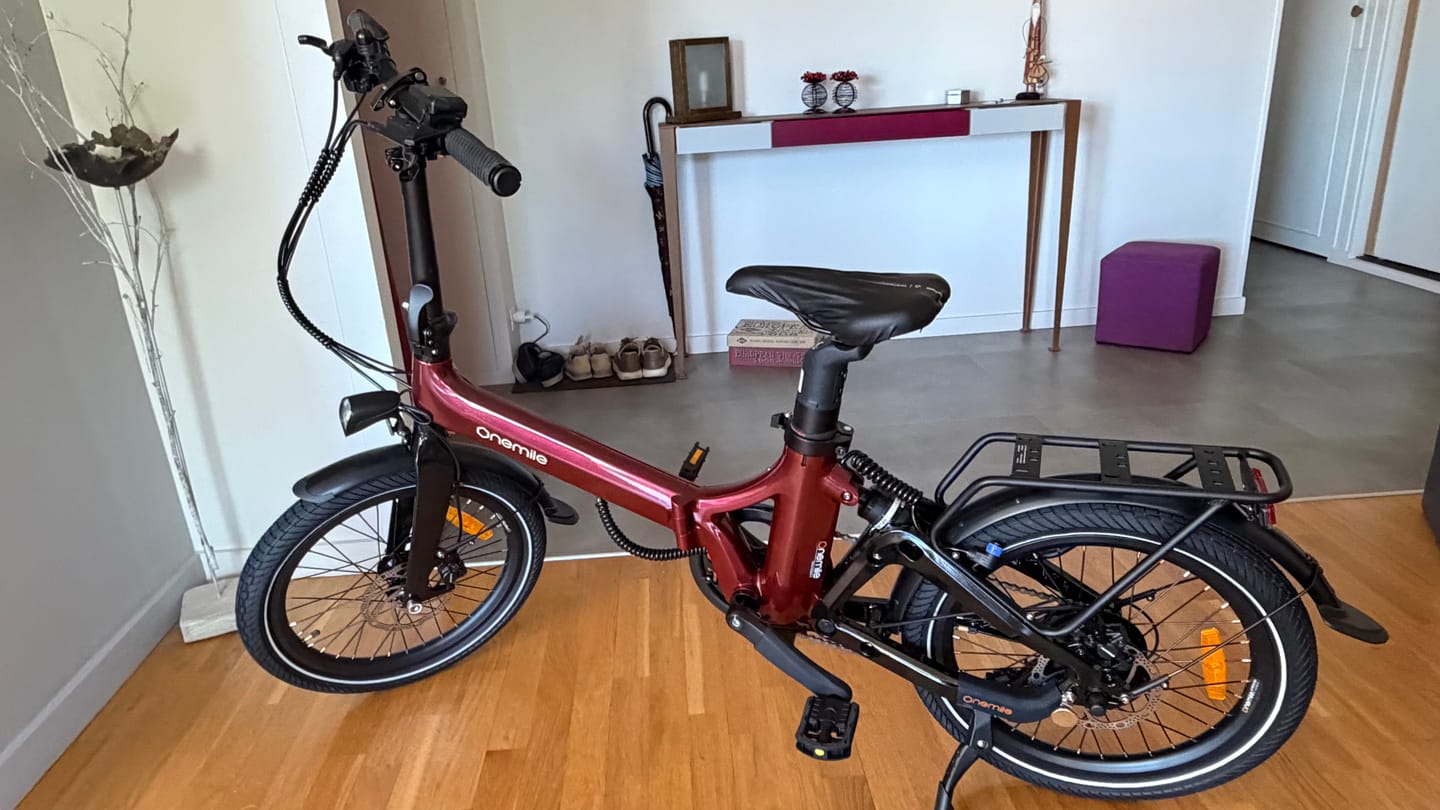

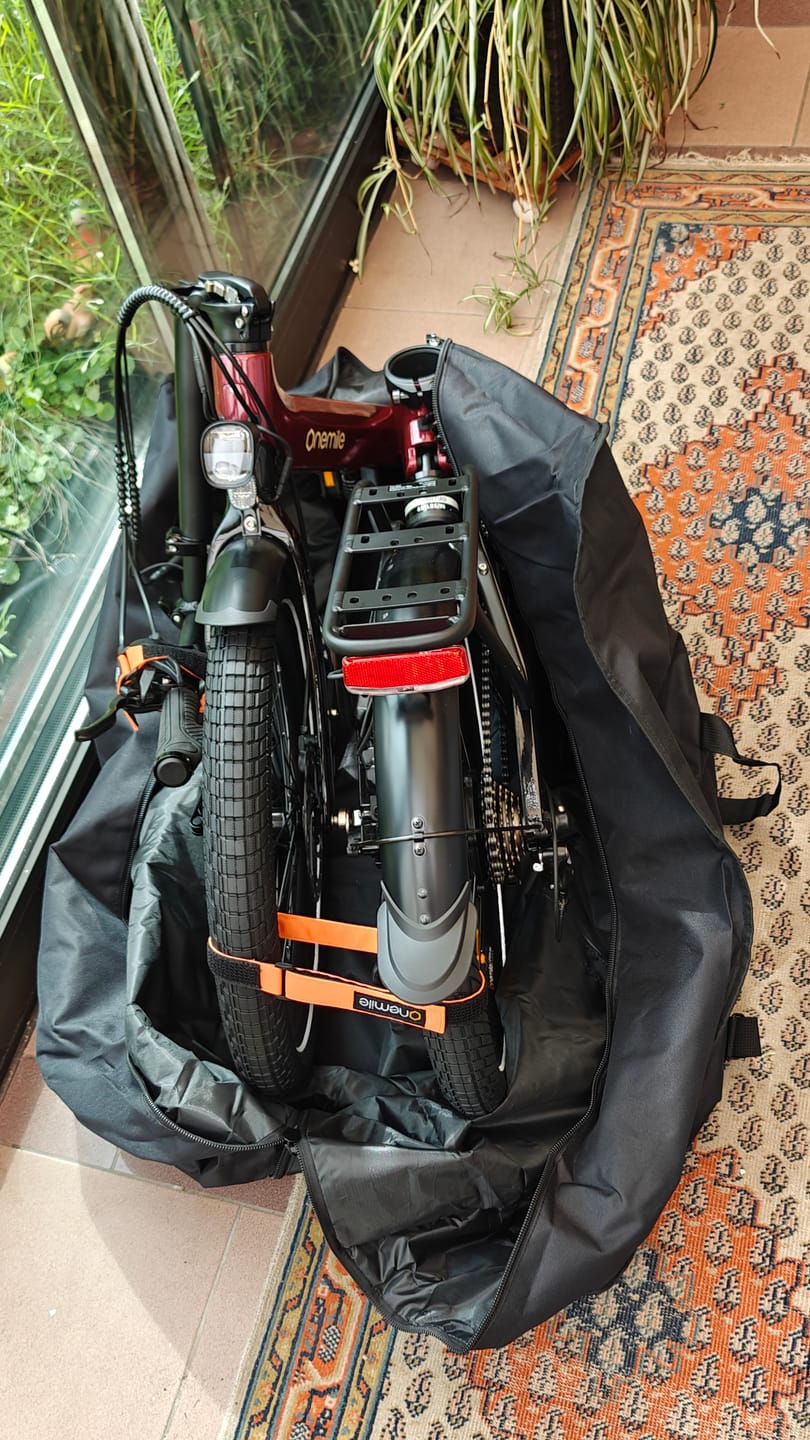

What Online Reviewers Say
TüV Certification
VAT Included
2 Year Warranty
Free Shipping
Quality assurance and regulatory compliance
CE certification
Nomad foldable e-bike achieved CE certification from TÜV Rheinland. This certification meets high international safety and quality standards, allowing it to be ridden legally in various regions.

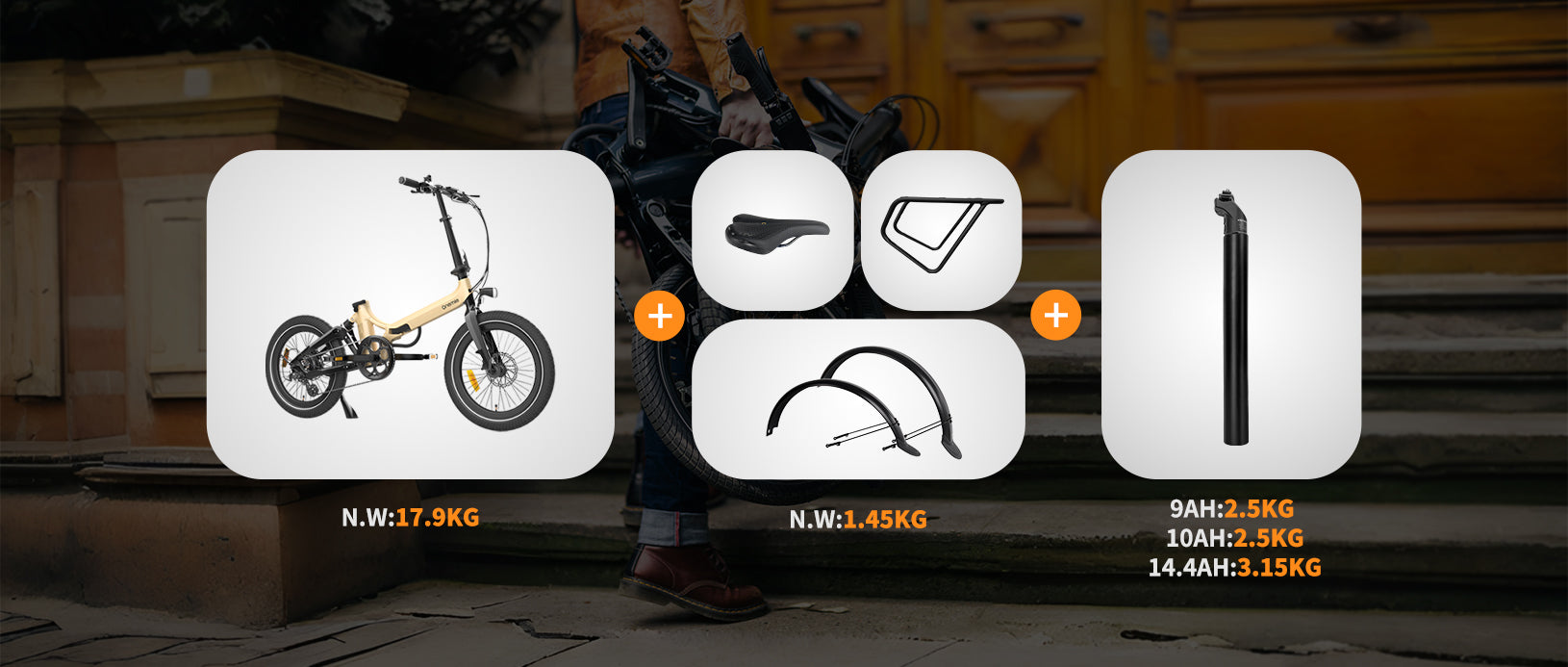

Weight(without battery): 17.9KG

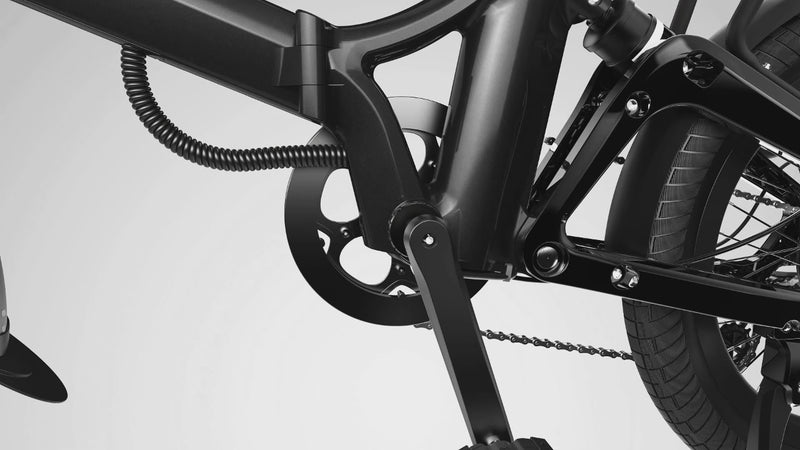

AVIATION-GRADE MAGNESIUM
Crafted from high-quality aviation-grade magnesium alloy, the frame of this bike is both lightweight and incredibly sturdy.

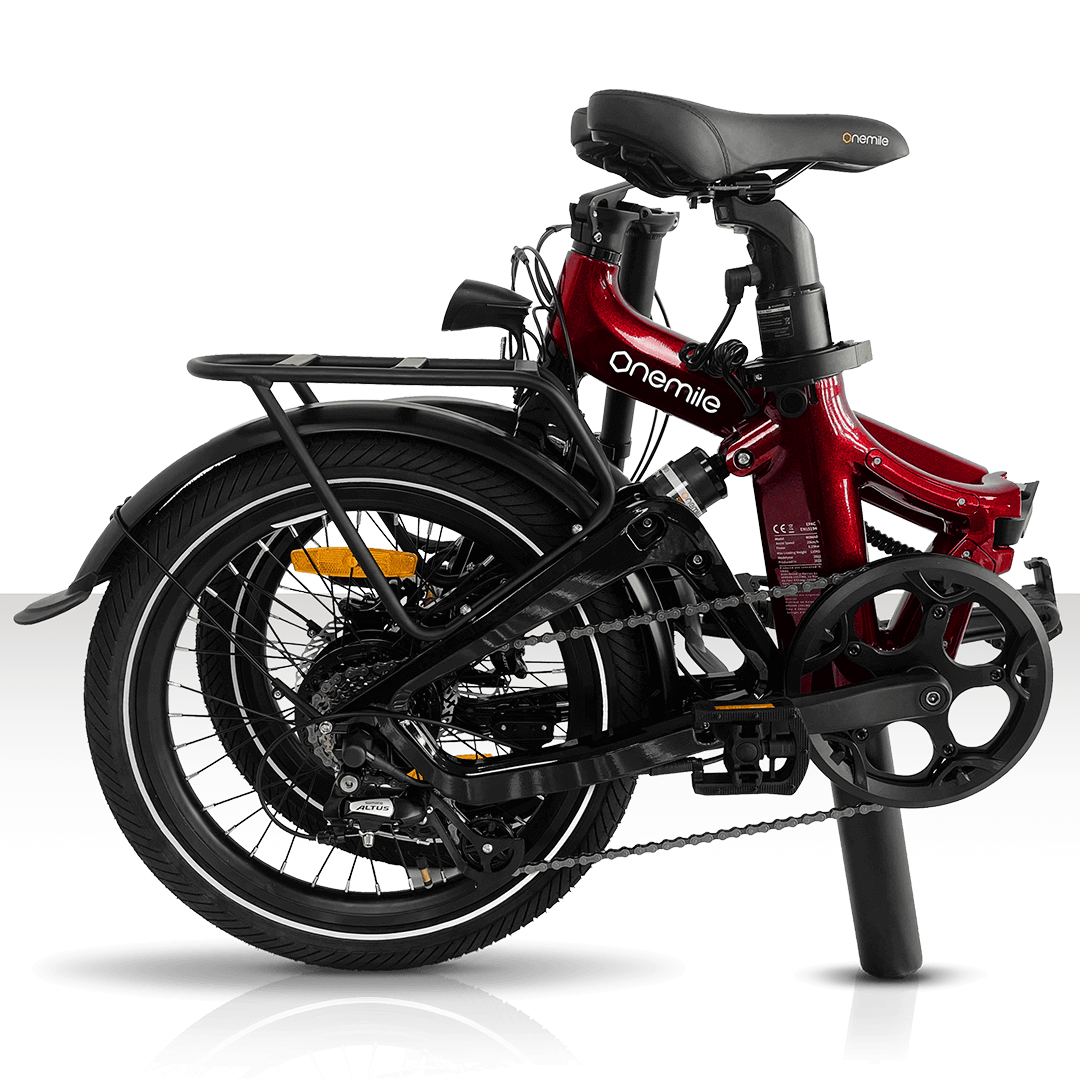

FOLDS IN SECONDS
NOMAD boasts a sleek and uncomplicated folding design, allowing for effortless and speedy folding and unfolding.
ULTIMATE COMFORT
The Rear Shock Absorber, uniquely found in folding e-bikes, combined with wide tires, makes Nomad your ideal companion for long journeys and rides on rough terrain.
Shimano Altus Transmission System (7-Speed)
7-Speed Cassette Sprocket
Close gear steps between primary sprockets creates smooth, comfortable pedaling, ensures durability and more precise shifting.
ALTUS Rear Derailleur
Attractive optical gear display, smooth and light action shifting for stress free long riding, easy and intuitive shifting operation.

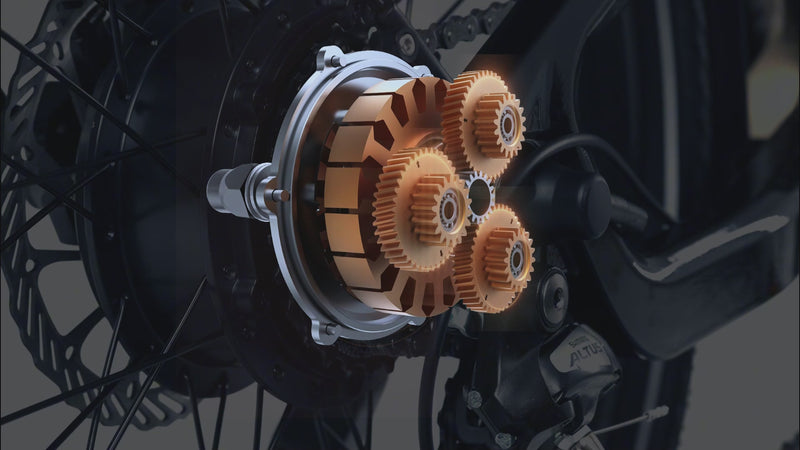

250W(55Nm)
SILENT HELICAL GEAR MOTOR
Power Unleashed – Rear Hub Motor from Aikema, Master Any Terrain with Robust Two-stage Gear Reduction, Delivering High-speed, High-torque Performance with a Whisper-quiet Ride.
Smart System
TORQUE SENSOR
Pedal Assist Mode ( 0-5 PAS Mode)
Smartly adapt the amount of motor torque generated based on the rider's pedaling power and the terrain conditions, makes your cycling experience light as a feather.
Bicycle Mode (7-speed Derailleur)
SHIMANO ALTUS 7-speed design for preSHIMANO ALTUS 7-speed design for precise shifting. Close gear steps between primary sprockets creates smooth, comfortable pedaling and cycling with ease.
Smartly adapt the amount of motor torque generated based on the rider's pedaling power and the terrain conditions, makes your cycling experience light as a feather.
SHIMANO ALTUS 7-speed design for preSHIMANO ALTUS 7-speed design for precise shifting. Close gear steps between primary sprockets creates smooth, comfortable pedaling and cycling with ease.

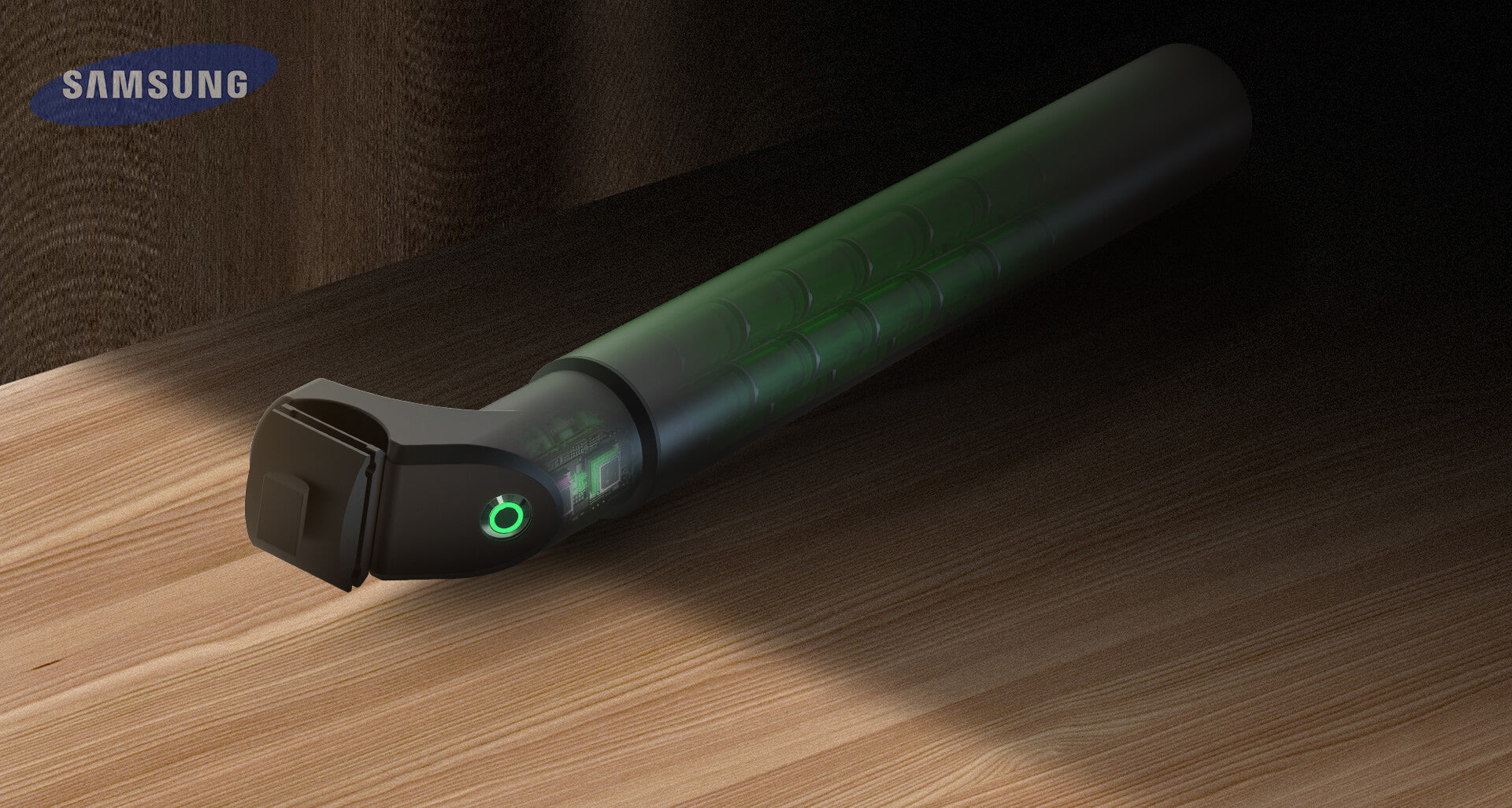

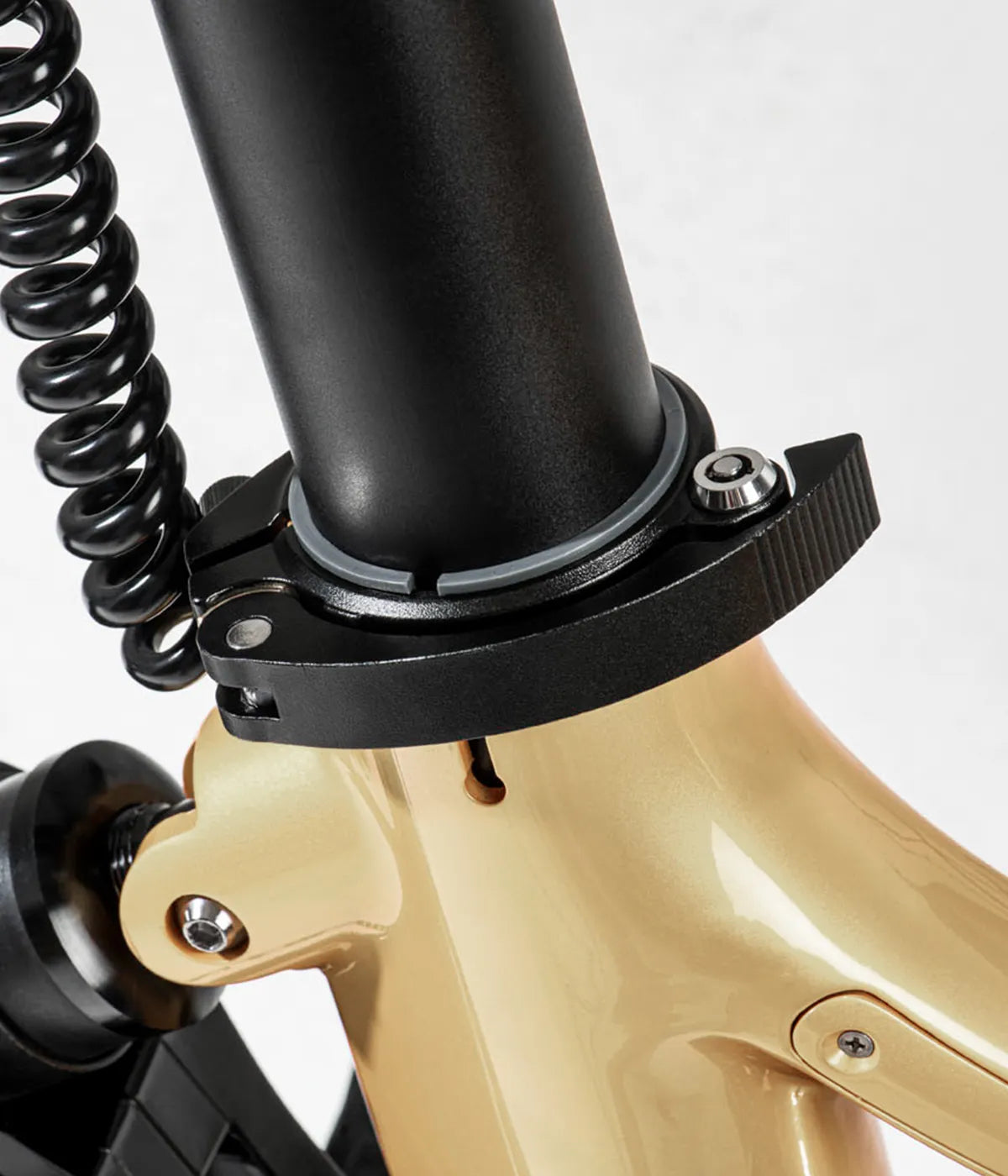

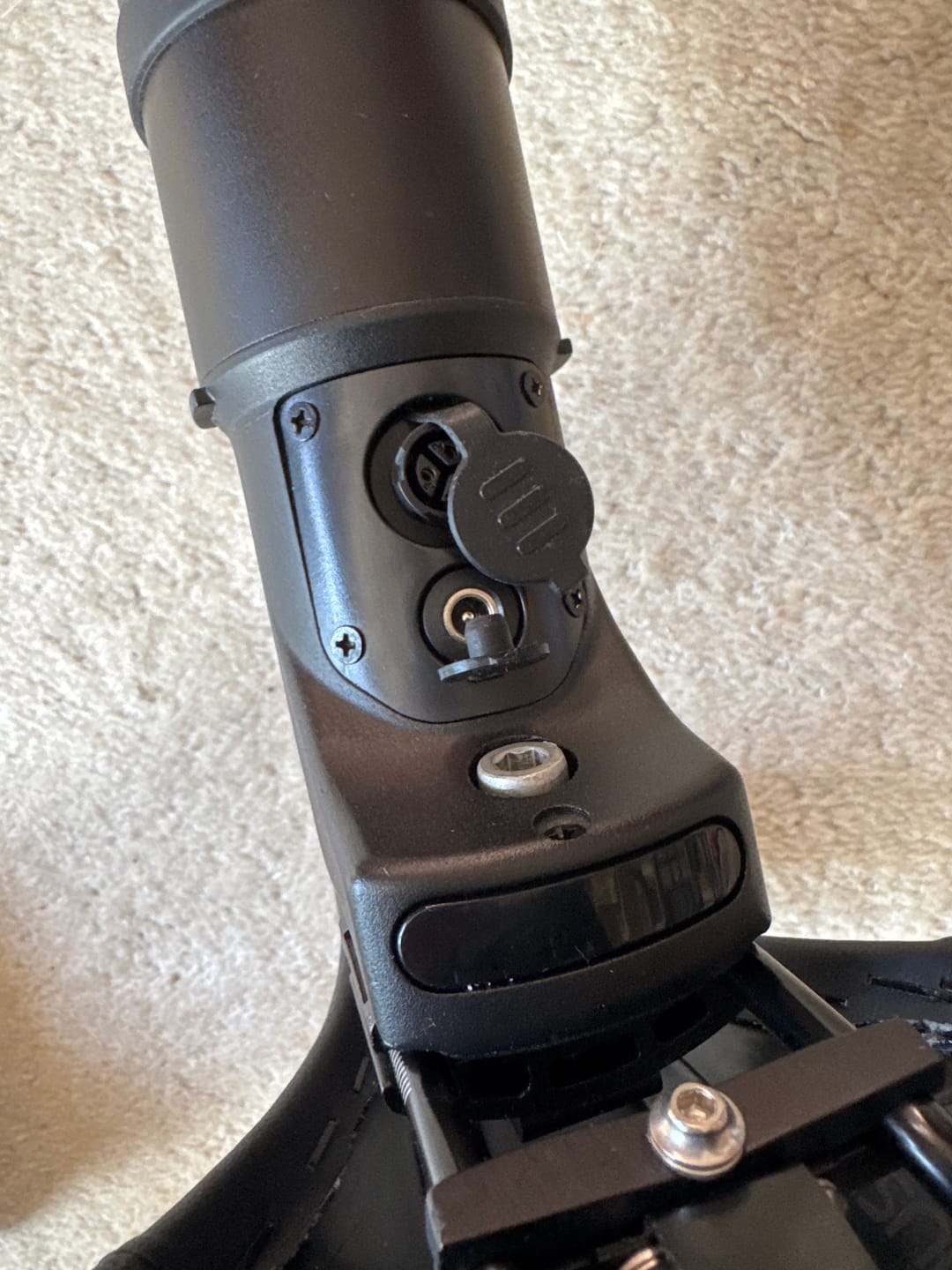

DETACHABLE BATTERY INTEGRATED WITH SEAT
Effortlessly recharge your battery with our intelligently designed removable battery feature, allowing for easy and convenient charging.
Battery Options
Nomad 14.4Ah is suitable for riders with heights ranging from 165 cm to 200 cm, while Nomad 10Ah accommodates riders whose height is between 150 cm and 190 cm.
High-quality components are all about details.
Built with high-quality components that are meticulously crafted to ensure reliability, durability, quality, and performance.
Hydraulic Disc Brake
The utilization of hydraulic disc brakes in both the front and rear of the product ensures seamless and effective braking performance.
Powerful and controllable braking
Enjoy a quiet braking experience with high braking force and excellent controllability, providing a smooth and peaceful ride. Easy installation, adjustment and maintenance.
Full-color IPS LCD Display
The new upgraded full-color IPS LCD display with USB charging port and internal light sensor.
Comfortable Ergonomic Saddle
Upgraded high-density PU foam ergonomic saddle enhances comfort and resilience during sports riding.
Hydraulic Disc Brake
The utilization of hydraulic disc brakes in both the front and rear of the product ensures seamless and effective braking performance.
Powerful and controllable braking
Enjoy a quiet braking experience with high braking force and excellent controllability, providing a smooth and peaceful ride. Easy installation, adjustment and maintenance.
Full-color IPS LCD Display
The new upgraded full-color IPS LCD display with USB charging port and internal light sensor.
Comfortable Ergonomic Saddle
Upgraded high-density PU foam ergonomic saddle enhances comfort and resilience during sports riding.
7-speed
Shimano Altus
Equipped with SHIMANO ALTUS Smart rear derailleur has a Wide Link design for increased rigidity and precise shifting.
20x2.25”
KENDA TIRES
Nomad's wide 20x2.25”tires, a rarity among folding e-bikes, are perfect for long rides on rugged paths, reflective striping is incorporated on tire sidewalls for superior night-time safety.
518.4Wh
Samsung Battery
Samsung lithium-ion battery cells, equipped with Battery Management System (BMS) to ensure cell balancing. Integrated with PTC chip for enhanced safety measures. Prevent short circuits, overloads, reverse connections, wiring issues, overcurrents, over-charging.
Elegance in details you'll love in Nomad.
You will undoubtedly be captivated by the remarkable intricacies of Nomad.
Fully assembled for effortless riding without hassle installation.
Product specification
Nomad

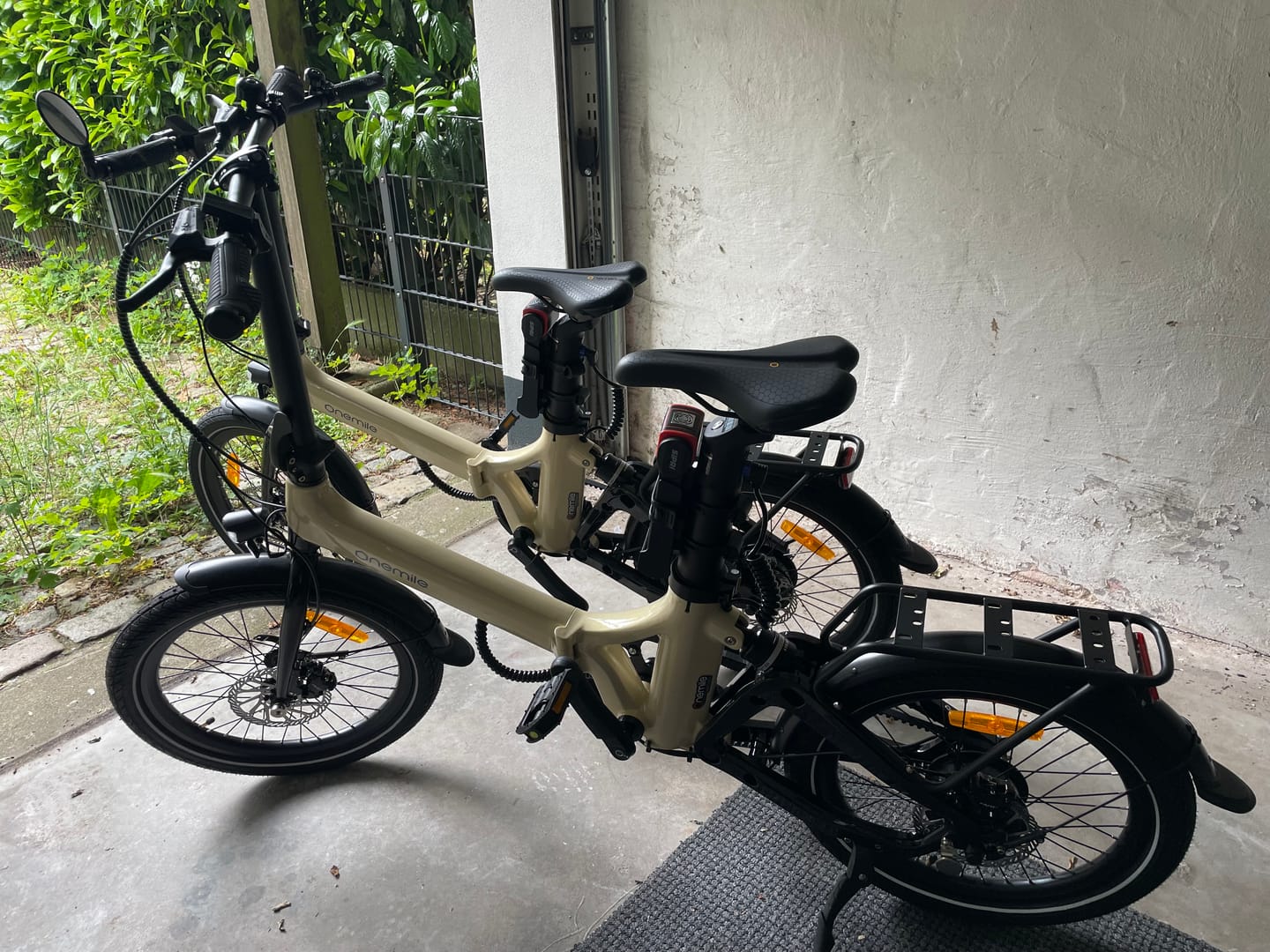

Nomad Lite
Nomad International
Foldable Ebike
Foldable Ebike
Foldable Ebike
- 17.9 Kg
- 18.3 Kg
- 18.3 Kg
- 20 x 2.25'' (Kenda, puncture protection tyre)
- 20 x 2.25'' (Innova, puncture protection tyre)
- 20 x 2.25'' (Innova, puncture protection tyre)
- Tektro Hydraulic Disc Brake
- Nutt Hydraulic disc brake
- Nutt Hydraulic Disc Brake
- Shimano Altus 7-Speed
- Shimano Altus 7 speeds
- Shimano Turney 7-Speed
- Torque Sensor
- Torque sensor
- Torque Sensor (Throttle mode)
- New Full-color IPS LCD Screen (Light Sensor)
- New Full-color IPS LCD Screen (Light Sensor)
- IPS LCD Screen
- Aikema Rear Hub Motor (250w)
- Aikema Rear Hub Motor (250w)
- Aikema Rear Hub Motor (350w)
- 55 Nm
- 49 Nm
- 42 Nm
- 10 Ah/14.4 Ah (Samsung cells)
- 10 Ah
- 9 Ah
- 14.4 Ah: 140 Km/10 Ah: 100 Km
- 10 Ah: 100 Km
- 9 Ah: 70 Km
- 14.4 Ah: 6 hours/10 Ah: 4 hours
- 4 hours
- 4 hours
2A
2A
2A
- Magnesium Alloy
- Magnesium Alloy + Steel Front Fork
- Magnesium Alloy
Available
Available
Available
IPX5
IPX5
IPX5
120 Kg
120Kg
120 Kg
14.4 Ah(> 165 cm)
10 Ah(> 155 cm)
- > 155 cm
- > 155 cm
- Upgraded High-Density Ergonomic Saddle
- Upgraded High-Density Ergonomic Saddle
- Ergonomic Saddle
FAQ
We are aware of the inquiries that have crossed your mind.
How is Nomad vibration damping effect?
Nomad adopts the soft tail mid-mounted shock absorber that only premium bicycles have. The shock absorber is moderately elastic, with good shock absorption, making it moreflexible, convenient and comfortable when crossing complex roads. It is suitable for riding on various road conditions.
What is the tyre size?
The tyres are 20 inches wide and the outer tyre is 20*2.25 wide. When compared to the narrow tyres of ordinary bikes, the wide tyres have better traction and reduce bumpiness while riding, offering a more comfortable ride.
What type of roads is the Nomad suitable for riding on?
NOMAD is suitable for asphalt roads and pavement cycling. It has a mid-set shock absorber for a more comfortable riding experience. Suitable for daily commuting, long-distance riding, and daily exercise. Its torque-sensing configuration is also suitable for light off-road sports. Includessmartpedal assist for easier traversal across complex roads.
What is the difference between torque and speed sensor?
Speed sensor: The speed sensor has less ability to sense pedalling force and identify road conditions than the torque sensor. When Nomad detects that you are pedalling, the motor fixes the power output according to the current electronic gear.
Torque Sensor: The torque sensor is the chip that controls the motor, It can determine your pedalling force as you accelerate and translate the data into an electrical signal. The motor can automatically determine the power required and deliver it to make the acceleration smoother.
What material is used for the frame of the Nomad?
The frame is made of aerospace grade magnesium alloy and cast in one piece. The Nomad frame is a one-piece frame with no welded joints, making it stronger and more durable, as well as beautiful and stylish.
Do I need the key to start?
The Nomad uses the button to start. First press the power button on the battery under the cushion and wait for a green light. Green light indicates that the power is on. Then long press the middle button on the dashboard to start.
Do the tires need to be inflated?
The tyres are non-slip. Inner and outer tyres need to be checked regularly for adequate pressure and inflated regularly to avoid damage.
Is the battery safe?
The 21700 lithium battery has a lifespan of 3-5 years and capacity may reduce depending on your riding frequency. The battery has a built-in BMS battery protection chip, with overcurrent protection, protection from short-circuiting, overheating protection, overcharge protection, so you can rest assured that it is safe!
What are the differences compared to other E-bikes?
We don't know much about the parameters of other brands. But you can first get to know the characteristics of our brand products: 1. magnesium alloy one-piece die-casting frame 2. front telescopic riser, according to the heel height adjustment handlebar height 3. tyres wide 2.25 for more comfort and stability 4. full-color screen display 5. power mode has 5 electric gears, with 7-segment shifting and up to 35-segment changes can be adjusted 6. the battery is 21700 lithium which is more durable and secure than common 18650 lithium quality 7. a simple, good-looking hidden folding buckle.
How long will the battery last?
The 21700 lithium battery has a lifespan of 3-5 years and capacity may reduce depending on your riding frequency. The battery has a built-in BMS battery protection chip, with overcurrent protection, protection from short-circuiting, overheat protection, and overcharge protection.
E-BIKE-KLAPPRÄDER / KLAPPRAD FÜR ERWACHSENE – PERFEKT FÜR ALLTAG, REISEN UND PENDELN
Das Fahrrad ist nicht nur das umweltfreundlichste und kostengünstigste, sondern auch das schnellste Verkehrsmittel, um in der Stadt von A nach B zu gelangen. Insbesondere E-Bike-Klapprad und Falträder, die lange Zeit als reine Modeerscheinung galten, sind eine perfekte, nachhaltige Ergänzung zum eigenen PKW oder dem ÖPNV.
„Klein, aber oho": Ausstattung und Merkmale von Falt- und Klapprädern
Ein Klapprad bzw. Faltrad ist ein besonders leichtes Fahrrad, das in erster Linie für Fahrten in der Stadt designt wurde und bei Bedarf mehrfach zusammengeklappt oder gefaltet und anschließend ganz bequem transportiert werden kann.
Für wen eignet sich ein E-BIKE-KLAPPRÄDER/Klapprad?
E-Bike-Klapprad/Klappräder sind das perfekte Fortbewegungsmittel für diejenigen, die nicht auf ein eigenes Fahrrad verzichten, dabei aber maximal flexibel bleiben möchten.
Berufspendler
die auf dem Weg zur Arbeit auf Bus und Bahn oder das Auto angewiesen sind, eine Teilstrecke aber gerne mit dem Rad zurücklegen möchten.
Personen ohne Garage oder Keller
die ein gewöhnliches Fahrrad nur schwer zuhause abstellen können.
FAQ
Klapprad vs. Faltrad: Was ist der Unterschied?
Das allererste faltbare Fahrrad war lediglich mit einer simplen Klappvorrichtung ausgestattet. Heutige Klappräder verfügen jedoch über einen innovativen Faltmechanismus.
Wie viel kostet ein Klapprad/Faltrad?
E-BIKE-KLAPPRÄDER/Klappräder gibt es in verschiedenen Preisklassen. Elektrische Modelle sind teurer, bieten jedoch ein hervorragendes Preis-Leistungs-Verhältnis.
Klapprad, City-Bike oder Trekkingrad: Was ist besser?
Das hängt vom Einsatzzweck ab: E-BIKE-KLAPPRÄDER/Klappräder und Cityräder sind für den Stadtverkehr konzipiert, während Mountainbikes oder Trekkingräder für längere Touren oder Gelände besser geeignet sind.
Muss ich beim Klapprad wegen des kleineren Reifendurchmessers mehr treten?
Nein. Hochwertige Klappräder sind mit einem großen vorderen Kettenblatt oder einem kleinen Ritzel ausgestattet, was eine höhere Trittgeschwindigkeit ermöglicht.
Wie schwer ist ein Klapprad/Faltrad?
Ein E-Bike-Klapprad wiegt normalerweise maximal 15-25 kg, sodass es problemlos transportiert werden kann.
Wie hoch ist der Verschleiß eines Klapprades?
Da Lenker und Sattelstange länger sind, können die Bauteile schneller verschleißen. Hochwertige Ersatzteile sind jedoch leicht erhältlich.
